2.6.1 The requirements of this section apply to
all permitted conditions of loading.
2.6.2 For the purpose of making damage stability
calculations, the volume and surface permeabilities shall be, in general,
as follows:
Spaces
|
Permeability
|
Appropriated to cargo or
stores
|
60
|
Occupied by accommodation
|
95
|
Occupied by machinery
|
85
|
Intended for liquids
|
0 or 95*
|
Appropriated for cargo
vehicles
|
90
|
Void
spaces
|
95
|
* whichever results in the more severe
requirements
|
2.6.3 Notwithstanding 2.6.2, permeability determined by direct calculation shall be used
where a more onerous condition results, and may be used where a less
onerous condition results from that provided according to 2.6.2.
2.6.4 The Administration may permit the use of
low-density foam or other media to provide buoyancy in void spaces,
provided that satisfactory evidence is provided that any such proposed
medium is the most suitable alternative and is:
-
.1 of closed-cell form if foam, or otherwise impervious
to water absorption;footnote
-
.2 structurally stable under service conditions;
-
.3 chemically inert in relation to structural
materials with which it is in contact or other substances with which
the medium is likely to be in contact (reference is made to 7.4.3.8); and
-
.4 properly secured in place and easily removable
for inspection of the void spaces.
2.6.5 The Administration may permit void bottom
spaces to be fitted within the watertight envelope of the hull without
the provision of a bilge system or air pipes provided that:
-
.1 the structure is capable of withstanding the
pressure head after any of the damages required by this section;
-
.2 when carrying out a damage stability calculation
in accordance with the requirements of this section, any void space
adjacent to the damaged zone shall be included in the calculation
and the criteria in 2.6, 2.13 and 2.15 complied
with;
-
.3 the means by which water which has leaked into
the void space is to be removed shall be included in the craft operating
manual required by chapter 18; and
-
.4 adequate ventilation is provided for inspection
of the space under consideration as required by 2.2.1.2.
-
.5 void spaces filled with foam or modular buoyancy
elements or any space without a venting system are considered to be
void spaces for the purposes of this paragraph, provided such foam
or elements fully comply with 2.6.4.
2.6.6 Any damage of a lesser extent than that
postulated in 2.6.7 to 2.6.11, as
applicable, which would result in a more severe condition shall also
be investigated.
2.6.7
Extent of side damage
The following side damage shall be assumed anywhere on the periphery
of the craft:
-
.1 the longitudinal extent of damage shall be
0.75 ∇1/3 , or (3 m + 0.225 ∇1/3 ),
or 11 m, whichever is the least;
-
.2 the transverse extent of penetration into the
craft shall be 0.2 ∇1/3 . However, where the craft
is fitted with inflated skirts or with non-buoyant side structures,
the transverse extent of penetration shall be at least 0.12 ∇1/3 into the main buoyancy hull or tank structure; and
-
.3 the vertical extent of damage shall be taken
for the full vertical extent of the craft,
where:
∇ |
= |
volume of
displacement corresponding to the design waterline (m3).
|
The damages described in this paragraph shall be assumed to
have the shape of a parallelepiped.footnote Applying
this to figure 2.6.7 a, the inboard
face at its mid-length shall be tangential to, or otherwise touching
in a least 2 places, the surface corresponding to the specified transverse
extent of penetration, as illustrated in figure
2.6.7 a.

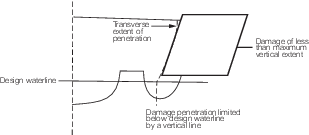

Side damage shall not transversely penetrate
a greater distance than the extent of 0.2∇1/3 at
the design waterline, except where a lesser extent is provided for
in 2.6.7.2. Refer to figures 2.6.7b and 2.6.7c.
If considering
a multihull, the periphery of the craft is considered to only be the
surface of the shell encompassed by the outboard surface of the outermost
hull at any given section.
Figure 2.6.7.a
Figure 2.6.7.b
Figure 2.6.7.c
2.6.8
Extent of bow and stern damage

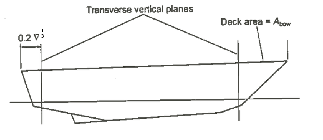

2.6.8.1 The following extents of damage are to
be applied to bow and stern, as illustrated in figure 2.6.8:
-
.1 at the fore end, damage to the area defined
as Abow in 4.4.1, the
aft limit of which being a transverse vertical plane, provided that
this area need not extend further aft from the forward extremity of
the craft's watertight envelope than the distance defined in 2.6.7.1;
and
-
.2 at the aft end, damage to the area aft of a
transverse vertical plane at a distance 0.2∇1/3 forward
of the aft extremity of the watertight envelope of the hull.
2.6.8.2 The provisions of 2.6.6 in relation to
damage of lesser extent remain applicable to such damage.
2.6.9
Extent of bottom damage in areas vulnerable
to raking damage
2.6.9.1 Application
-
.1 Any part of the surface of the hull(s) is considered
to be vulnerable to raking damage if:
-
.1.1 it is in contact with the water at 90% of
maximum speed in smooth water, and
-
.1.2 it also lies below two planes which are perpendicular
to the craft centreline plane and at heights as shown in figure 2.6.9.1.
For
multihulls, individual hulls shall be considered separately.
-
.2 Raking damage shall be assumed to occur along
any fore-and-aft line on the surface of the hull(s) between the keel
and the upper limit defined in the figure below:
-
.3 Damage shall not be applied at the same time
as that defined in 2.6.7 or 2.6.10.
Figure 2.6.9.1
where: T = maximum draught of the hull (each hull considered
individually in the case of multihulls) to the design waterline, excluding
any nonbuoyant structure, provided that structures such as single
plate skegs or solid metal appendages shall be considered to be non-buoyant
and thus excluded.
2.6.9.2.1 Two different longitudinal extents shall
be considered separately:
-
.1 55% of the length L, measured
from the most forward point of the underwater buoyant volume of each
hull; and
-
.2 a percentage of the length L,
applied anywhere in the length of the craft, equal to 35% for craft
where L = 50m and over and equal to ( L/2
+ 10)% for craft where L is less than 50m.
2.6.9.2.2 Except as provided below, the penetration
normal to the shell shall be 0.04 ∇1/3 or 0.5 m,
whichever is the lesser, in association with a girth along the shell
equal to 0.1∇1/3, where ∇ is the volume of
displacement corresponding to the design waterline (m3).
However, this penetration or girth shall under no circumstances extend
above the vertical extent of the vulnerable area as specified in 2.6.9.1.1.

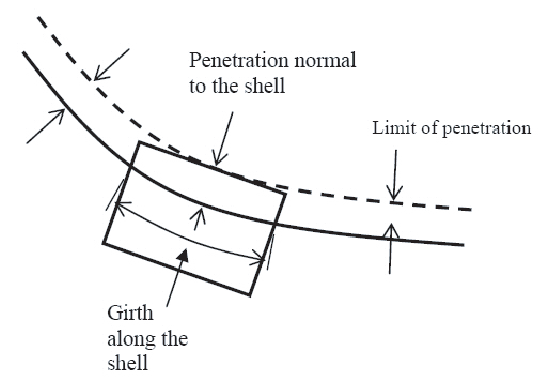

2.6.9.2.3 The shape of damage shall be assumed
to be rectangular in the transverse plane as illustrated in figure 2.6.9.2 below. Damage is to
be assumed at a series of sections within the defined longitudinal
extent in accordance with figure 2.6.9.2,
the mid-point of the damaged girth being maintained at a constant
distance from the centreline throughout that longitudinal extent.
Figure 2.6.9.2
2.6.10
Extent of bottom damage in areas
not vulnerable to raking damage
2.6.10.1 Application
This applies to all parts of the hull(s) below the design waterline
which are not defined as vulnerable to raking damage in 2.6.9.1. Damage shall not be applied at
the same time as that defined in 2.6.7 or 2.6.9.
2.6.10.2 Extent
The following extent of damage shall be assumed:
-
.1 the length of damage in the fore-and-aft direction
shall be 0.75 ∇1/3 , or (3 m + 0.225 ∇1/3),
or 11 m whichever is the least;
-
.2 the athwartships girth of damage shall be 0.2
∇1/3;
-
.3 the depth of penetration normal to the shell
shall be 0.02 ∇1/3,
where:
∇ |
= |
= volume of displacement
corresponding to the design waterline (m3); and
|
2.6.11 In applying 2.6.9 and 2.6.10 to multihull craft, an obstruction
at or below the design waterline of up to 7 m width shall be considered
in determining the number of hulls damaged at any one time. The requirement
of 2.6.6 shall also be applied.
2.6.12 Following any of the postulated damages
detailed in 2.6.6 to 2.6.11, the craft in still water shall
have sufficient buoyancy and positive stability to simultaneously
ensure that:
-
.1 for all craft other than amphibious air-cushion
vehicles, after flooding has ceased and a state of equilibrium has
been reached, the final waterline is below the level of any opening
through which further flooding could take place by at least 50% of
the significant wave height corresponding to the worst intended conditions;
-
.2 for amphibious air-cushion vehicles, after
flooding has ceased and a state of equilibrium has been reached, the
final waterline is below the level of any opening through which further
flooding could take place by at least 25% of the significant wave
height corresponding to the worst intended conditions;
-
.3 there is a positive freeboard from the damage
waterline to survival craft embarkation positions;
-
.4 essential emergency equipment, emergency radios,
power supplies and public address systems needed for organizing the
evacuation remain accessible and operational; and
-
.5 the residual stability of craft meets the appropriate
criteria as laid out in annexes 7 and 8 according to table
2.3.4. Within the range of positive stability governed by the
criteria of annexes 7 and 8, no unprotected opening shall be submerged.
2.6.13 Downflooding openings referred to in 2.6.12.1
and 2.6.12.2 shall include doors and hatches which are used for damage
control or evacuation procedures, but may exclude those which are
closed by means of weathertight doors and hatch covers and not used
for damage control or evacuation procedures.
