The following appendices should be attached to the Plan,
as a minimum:
The following table provides an example of how ship interest
contact information could be presented:

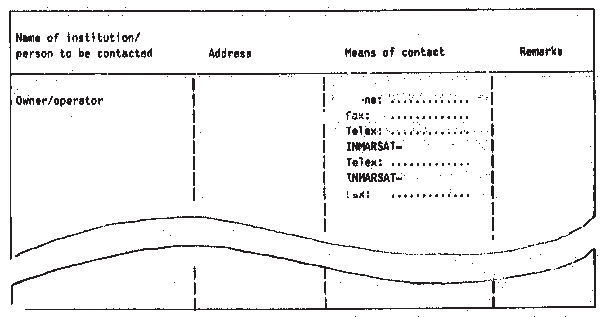

(a) Owner/Operator
contacts

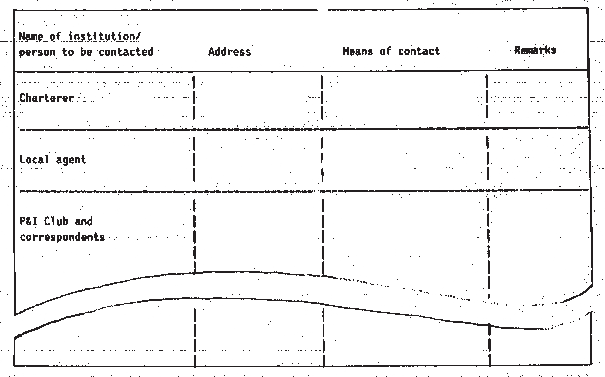

(b) Other ship interest
contacts
Additionally the following information could be attached:
-
summary flow chart (consideration
should be given to adapting the flow chart for bulkhead display on
board);
- information relevant to roles and responsibilities of national
and local authorities;
- other reference material.

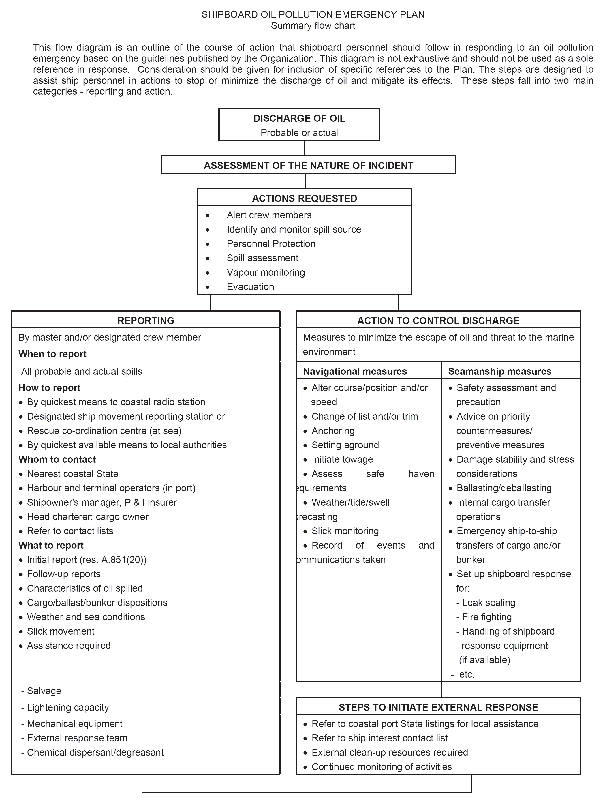

Figure 2. Summary flow
chart
