Section 2.6.7 Assumed shape of damage

  1 Reference is made to the interpretations in 2.6.6 that also relate to this clause.

  2 The shape of the damage should be assumed to be a parallelepiped-shaped solid block entering the side of the craft in a transverse direction as illustrated in figures 2.6.7 a, b and c below.

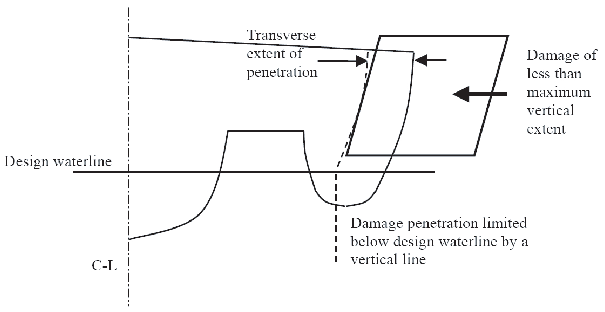

Figure 2.6.7a

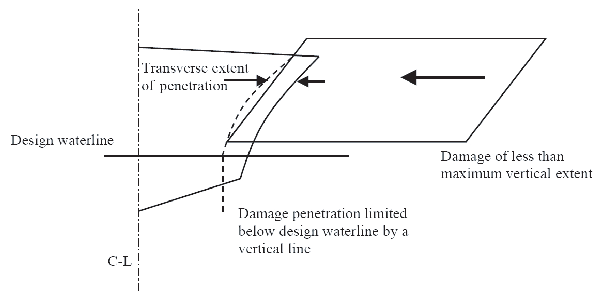

Figure 2.6.7b

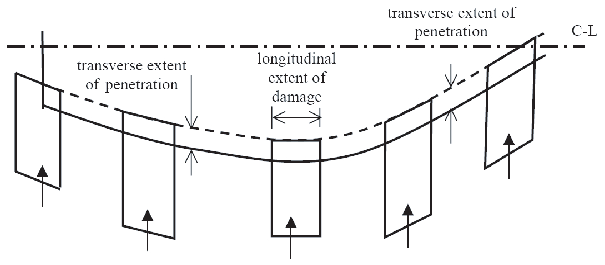

Figure 2.6.7c
