5 Liferafts -
Rigid and Inflatable
5.1 Drop test
5.1.1 Each type of liferaft should be subjected
to a minimum of two drop tests. Where the liferaft in its operational
condition is packed in a container or valise, one such test should
be carried out with the liferaft packed in each type of container
or valise in which the manufacturer proposes to market it.
5.1.2 The liferaft, in the operationally packed
condition, should be suspended and then dropped from a height of 18
m into the water. If it is to be stowed at a height greater than 18
m, it should be dropped from the height at which it is to be stowed.
The free end of the painter should be attached to the point of suspension
so that it pays out as the liferaft drops, thus simulating actual
conditions.
5.1.3 The liferaft should be left floating for
30 min:
-
.1 in the case of a rigid liferaft it should be
lifted from the water to permit thorough inspection of the liferaft,
the contents of the equipment container and, where applicable, the
container or valise; and
-
.2 in the case of an inflatable liferaft, it should
then be inflated. The liferaft should inflate upright and in the time
prescribed in 5.17.3 to 5.17.6.
The thorough inspection prescribed in 5.1.3.1 should then be carried
out.
5.1.4 Damage to the container or valise, if the
liferaft is normally within it when launched, is acceptable provided
the Administration is satisfied that it would not be a hazard to the
liferaft. Damage to any item of equipment is acceptable subject to
the Administration being satisfied that the operational efficiency
has not been impaired. Damage to fresh water receptacles may be accepted
provided they do not leak. However, for drop tests from heights exceeding
18 m, leakage from up to 5% of the receptacles may be accepted provided
that:
-
.1 the equipment list for the inflatable liferaft
specifies the carriage of 5% excess water or means of desalination
adequate to produce an equivalent amount; or
-
.2 the water receptacles are contained in a waterproof
overwrap.
5.2 Jump test
5.2.1 It should be demonstrated that a person
can jump on to the liferaft, with and without the canopy erected,
from a height above the floor of at least 4.5 m without damaging the
liferaft. The test subject should weigh not less than 82.5 kg and
should be wearing hard bottom shoes with smooth soles and no protruding
nails. The number of jumps performed should be equal to the total
number of persons for which the liferaft is to be approved.
5.2.2 The jump test may be simulated by dropping
a suitable and equivalent mass, arranged so as to impact the liferaft
with shoes as described in 5.2.1.
5.2.3 There should be no torn fabric, or damage
to seams as a result of the test.
5.2.4 Unless the configuration of both sides of
a canopied reversible liferaft are identical, this test should be
repeated for both sides of the liferaft.
5.3 Weight test
The fully packed liferaft container should be weighed to
determine whether its mass exceeds 185 kg. The weight test should
be performed on the heaviest variation of the liferaft, considering
different containers and equipment packs which may be used. If the
mass exceeds 185 kg, the different combinations of containers and
equipment packs should be weighed to determine which will and which
will not exceed 185 kg.
5.4 Towing test
It should be demonstrated by towing that the fully loaded
and equipped liferaft is capable of being satisfactorily towed at
speeds of up to 3 knots in calm water. Towing should be by a line
attached to the liferaft's towing connection. The sea anchor should
be streamed while the liferaft is towed. The liferaft should be towed
for a distance of at least 1 km. During the test the force required
to tow the liferaft should be measured at speeds of 2 knots and 3
knots and recorded on the type approval certificate.
5.5 Mooring out tests
The liferaft should be loaded with mass equal to the mass
of the total number of persons for which it is to be approved and
its equipment and moored in a location at sea or in a seawater harbour.
The liferaft should remain afloat in that location for 30 days. In
the case of an inflatable liferaft, the pressure may be topped up
once a day using the manual pump; however, during any 24 h period
the liferaft should retain its shape. The liferaft should not sustain
any damage that would impair its performance. After this test, the
inflatable liferaft should be subjected to the pressure test prescribed
in 5.17.7 and 5.17.8.
5.6 Liferaft painter
system test
The breaking strength of the painter system including its
means of attachment to the liferaft should be as follows:
-
.1 not less than 7.5 kN for liferafts accommodating
up to 8 persons;
-
.2 not less than 10.0 kN for liferafts accommodating
9 to 25 persons;
-
.3 not less than 15.0 kN for liferafts accommodating
more than 25 persons.
5.7 Loading and seating
test
The freeboard of the liferaft in the light condition, including
its full equipment but no personnel, should be recorded. The freeboard
of the liferaft should again be recorded when the number of persons
for which the liferaft is to be approved, having an average mass of
82.5 kg, and each wearing an immersion suit and lifejacket, have boarded
and are seated. It should be established that all the seated persons
have sufficient space and headroom and it should be demonstrated that
the various items of equipment can be used within the liferaft in
this condition and, in the case of an inflated liferaft, with the
floor inflated. The freeboard, when loaded with the mass of the number
of persons for which it is to be approved and its equipment, with
the liferaft on an even keel and, in the case of an inflatable liferaft,
with the floor not inflated, should not be less than 300 mm. Unless
the configuration of both sides of a canopied reversible liferaft
are identical, this test should be repeated for both sides of the
liferaft.
5.8 Boarding and closing
arrangement test
The boarding test should be carried out in a swimming pool
by a team of not more than four persons who should be of mature age
and of differing physiques as determined by the Administration. Preferably
they should not be strong swimmers. For this test they should be clothed
in shirt and trousers or a boiler suit and should wear approved lifejackets
suitable for an adult. They must each swim about 100 m before reaching
the liferaft for boarding. There must be no rest period between the
swim and the boarding attempt. Boarding should be attempted by each
person individually with no assistance from other swimmers or persons
already in the liferaft. The water should be of a depth sufficient
to prevent any external assistance when boarding the liferaft. The
arrangements will be considered satisfactory if three of the persons
board the liferaft unaided and the fourth boards with the assistance
of any of the others. The above-mentioned test should be carried out
also with persons clothed in immersion suits and lifejackets. After
the boarding test, it should be demonstrated by a person clothed in
an approved immersion suit that the canopy entrance can be easily
and quickly closed in 1 min and can be easily and quickly opened from
inside and outside in 1 min. Unless the configuration of both sides
of a canopied reversible liferaft are identical, this test should
be repeated for both sides of the liferaft.
5.9 Stability test
5.9.1 The number of persons for which the liferaft
is to be approved should be accommodated on one side and then at one
end and in each case the freeboard should be recorded. Under these
conditions the freeboard should be such that there is no danger of
the liferaft being swamped. Each freeboard measurement should be taken
from the waterline to the top surface of the uppermost main buoyancy
tube at its lowest point.
5.9.2 The stability of the liferaft during boarding
may be ascertained as follows: Two persons, each wearing approved
lifejackets, should board the empty liferaft. It should then be demonstrated
that the two persons in the liferaft can readily assist from the water
a third person who is required to feign unconsciousness. The third
person must have his back towards the entrance so that he cannot assist
the rescuers. It should be demonstrated that the water pockets adequately
counteract the upsetting moment on the liferaft and there is no danger
of the liferaft capsizing.
5.10 Manoeuvrability
test
It should be demonstrated that with the paddles provided,
the liferaft is capable of being propelled when fully laden in calm
conditions over a distance of at least 25 m.
5.11 Swamp test
It should be demonstrated that the liferaft, when fully
swamped, is capable of supporting its full equipment and the number
of persons for which it is to be approved. It should also be demonstrated
that the liferaft does not seriously deform in this condition.
5.12 Canopy closure
test
To ensure the effectiveness of the canopy closures in preventing
water entering the liferaft, the efficiency of the closed entrances
should be demonstrated by means of a hose test or by any other equally
effective method. The requirement for the hose test is that about
2,300 l of water per minute be directed at and around
the entrances through a 63.5 mm hose from a point 3.5 m away and 1.5
m above the level of the buoyancy tubes for a period of 5 min. The
accumulation of water inside the liferaft should not exceed 4 l .
Unless the configuration of both sides of a canopied reversible liferaft
are identical, this test should be repeated for both sides of the
liferaft.
5.13 Buoyancy of float-free
liferafts
It should be demonstrated that the liferafts packed in containers
which are float-free have sufficient inherent buoyancy to inflate
the liferaft by means of the actuating line in the event of the ship
sinking. The combination of equipment and container or valise should
be that which produces the maximum packed weight.
5.14 Detailed inspection
A liferaft, complete in all respects and, if an inflatable
liferaft, in a fully inflated condition should be subjected to a detailed
inspection in the manufacturer's works to ensure that all the Administration's
requirements are fulfilled.
5.15 Weak link test
The weak link in the painter system should be tensile tested
and should have a breaking strain of 2.2 ± 0.4 kN.
5.16 Davit-launched
liferafts - strength test of lifting components
5.16.1 The breaking strength of the webbing or
rope and the attachments to the liferaft used for the lifting bridle
should be established by tests on three separate pieces of each different
item. The combined strength of the lifting bridle components should
be at least six times the mass of the liferaft when loaded with the
number of persons for which it is to be approved and its equipment.
Impact test
5.16.2 The liferaft should be loaded with a mass
equal to the mass of the number of persons for which it is to be approved
and its equipment. With the liferaft in a free hanging position it
should be pulled laterally to a position so that when released it
will strike a rigid vertical surface at a velocity of 3.5 m/s. The
liferaft should then be released to impact against the rigid vertical
surface. After this test the liferaft should show no signs of damage
which would affect its efficient functioning.
Drop test
5.16.3 The liferaft, loaded as prescribed in 5.16.2,
should be suspended from an on-load release at a height of 3 m above
the water, be released and allowed to fall freely into the water.
The liferaft should then be examined to ensure that no damage has
been sustained which would affect its efficient functioning.
Davit-launched liferaft boarding test
5.16.4 A davit-launched liferaft should, in addition
to the boarding test prescribed in 5.8,
be subjected to the following test. The liferaft, should be suspended
from a liferaft launching appliance, or from a crane with a head sheave
of similar height, and bowsed in to the ship's side or simulated ship's
side. The liferaft should then be boarded by the number of persons
for which it is to be approved of average mass 82.5 kg. There should
be no undue distortion of the liferaft. The bowsing should then be
released and the liferaft left hanging for 5 min. It should then be
lowered to the sea or floor and unloaded. At least three tests are
required in succession, with the hook of the lowering appliance so
positioned that its distance from the ship's side is:
-
.1 half the beam of the liferaft +150 mm;
-
.2 half the beam of the liferaft; and
-
.3 half the beam of the liferaft -150 mm.
The boarding, which is intended to simulate actual shipboard
conditions, should be timed and the time recorded.
5.17 Additional tests
applicable to inflatable liferafts only
Damage test
5.17.1 It should be demonstrated that, in the
event of any one of the buoyancy compartments being damaged or failing
to inflate, the intact compartment or compartments should support,
with positive freeboard over the liferaft's periphery, the number
of persons for which the liferaft is to be approved. This can be demonstrated
with persons each having a mass of 82.5 kg and seated in their normal
positions or by an equally distributed mass.
Righting test
5.17.2 This test is not required for a canopied
reversible liferaft. For this test the liferaft should be inverted
so as to simulate inverted inflation.
-
.1 the inflatable liferaft should be loaded with
its heaviest equipment pack. All of the entrances, ports, and other
openings in the liferaft canopy should be open in order to allow the
infiltration of water into the canopy when capsized;
-
.2 the canopy of the liferaft should then be completely
filled with water. Except for an automatically self-righting liferaft,
this may be accomplished, if necessary by partially collapsing the
canopy support, or alternatively the uninflated liferaft should be
flaked out onto the surface of the water upside down and inflation
initiated. An automatically self-righting liferaft should self-right
in this condition, and should become boardable in the upright position
within 1 min after the start of the test. If the inflatable liferaft,
other than an automatically self-righting liferaft, does not self-right,
it should be allowed to remain in an inverted position for at least
10 min before righting is attempted;
-
.3 the righting test should be carried out by
the same team of persons required for the boarding test similarly
clothed and wearing lifejackets and after completing the swim required
in 5.8. At least one of the
persons righting the inflatable liferaft should weigh less than 82.5
kg. Each person should attempt to right the liferaft unaided. The
water should be of sufficient depth to give no external assistance
to the swimmers when mounting the inverted liferaft;
-
.4 the righting arrangements will be considered
satisfactory if each person rights the liferaft unaided. There should
be no damage to the structure of the inflatable liferaft, and the
equipment pack should remain secured in its place.
Inflation test
5.17.3 A liferaft, packed in each type
of container, should be inflated by pulling the painter and the time
recorded:
-
.1 for it to become boardable, i.e. when buoyancy
tubes are inflated to full shape and diameter;
-
.2 for the cover to be erect; and
-
.3 for the liferaft to reach its full operational
pressure footnote when tested:
-
.3.1 at an ambient temperature of between 18°C
and 20°C;
-
.3.2 at a temperature of -30°C; and
-
.3.3 at a temperature of +65°C.
5.17.4 When inflated in an ambient temperature
of between 18°C and 20°C, it should achieve total inflation
in not more than 1 min. In the case of automatic self-righting liferaft,
the liferaft should achieve total inflation and be boardable in the
upright position in not more than 1 min, regardless of the orientation
in which the liferaft inflates. The force required to pull the painter
and start inflation should not exceed 150 N.
5.17.5 For the inflation test at -30°C
the packed liferaft should be kept at room temperature for at least
24 h, then placed in a refrigerated chamber at a temperature of -30°C
for 24 h prior to inflation by pulling the painter. Under these conditions
the liferaft should reach working pressure in 3 min. Two liferafts
should be subject to an inflation test at this temperature. There
should be no seam slippage, cracking, or other defect in the liferaft
and it should be ready for use after the tests.
5.17.6 For the inflation test at +65°C
the packed liferaft should be kept at room temperature for at least
24 h, then placed in a heating chamber at a temperature of +65°C
for not less than 7 h prior to inflation by pulling the painter. Under
these conditions the gas pressure relief valves must be of sufficient
capacity to prevent damage to the liferaft by excess pressure and
to prevent the maximum pressure during the inflation from reaching
twice the reseat pressure of the release valve. There must be no seam
slippage, cracking or other defect in the liferaft.
Pressure test
5.17.7 Each inflatable compartment in
the liferaft should be tested to a pressure equal to three times the
working pressure. Each pressure relief valve should be made inoperative,
compressed air should be used to inflate the inflatable liferaft and
the inflation source removed. The test should continue for at least
30 min. The pressure should not decrease by more than 5% as determined
without compensating for temperature and atmospheric pressure changes,
and there should be no seam slippage, cracking or other defect in
the liferaft.
5.17.8 The measurement of pressure drop
due to leakage can be started when it has been assumed that compartment
material has completed stretching due to the inflation pressure and
achieved equilibrium.
Seam strength test
5.17.9
-
.1 It should be demonstrated that sample seams,
prepared in the same condition as in production, can withstand a test
load equal to the minimum specified liferaft fabric tensile strength.
Sewn seams on outer canopy fabric shall withstand a test load of at
least 70% of the minimum specified fabric tensile strength when tested
by the method described in ISO 1421:1998 and by using test samples
as shown in figure 1 below.
-
Samples of all types of sewing used in production shall
be tested.
Seam constructions in both warp and weft direction shall be
tested.
The test specimens should be cut out from pre-sewn samples of
fabric and no locking of thread ends shall take place.
-
.2
Weld strength
-
.2.1 When tested by the method prescribed below,
the load required to initiate failure of the weld should be not less
than 175 N;
-
.2.2 Specimens should be prepared and tested as
given in .3.3 below:
-
.3 Hydrolysis tests should be conducted on sample
welded seams where thermoplastic coated materials are to be used.
The tests should be conducted as follows:
-
.3.1 When tested by the method prescribed below,
the weld strength of the sample seam should achieve 125 N/25 mm minimum.
-
.3.2 Test method:
-
.1 Store the test specimens for 12 weeks over
water in a closed container at 93 ± 2°C.
-
.2 After the conditioning as above, dry the specimens
for 1 h at 80 ± 2°C and condition at 20 ± 2°C,
65% RH for 24 h.
-
.3.3 Welded test samples should be prepared as
follows:
Two samples of fabric 300 mm × 200 mm, cut with the short
side parallel to the warp direction, should be superimposed face to
back for double coated fabrics, or coated face to coated face for
single or asymmetrically coated fabrics. They should be welded with
a tool 10 ± 1 mm width of convenient length. 25 mm wide test
specimens should be cut transversely to the line of the weld. The
test samples should be mounted in a test machine as in ISO 1421:1998.
The maximum peel load should be recorded.

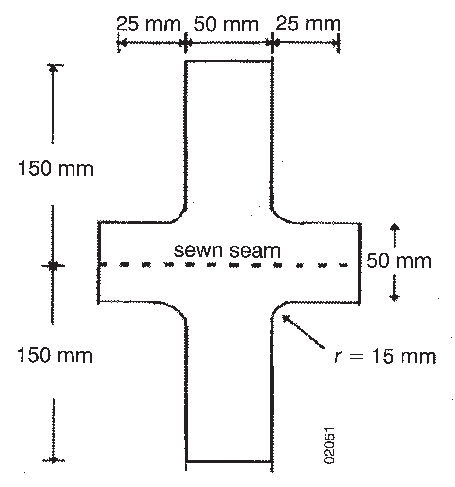

Figure 1 Sample specification for sewn canopy seams
Davit-launched inflatable liferafts - strength test
5.17.10 It should be demonstrated by an overload
test on the liferaft hanging from its centre support that the bridle
system has an adequate factor of safety as follows:
-
.1 the liferaft should be placed in a temperature
of 20±3°C for a period of at least 6 h;
-
.2 following this period of conditioning, the
liferaft should be suspended from its lifting hook or bridle and the
buoyancy chambers (not including an inflatable floor) inflated;
-
.3 when fully inflated and when the relief valves
have reseated themselves, all relief valves should be made inoperative;
-
.4 the liferaft should then be lowered and loaded
with a distributed mass equivalent to four times the mass of the number
of persons for which it is to be approved and its equipment, the mass
of each person being taken as 82.5 kg;
-
.5 the liferaft should then be raised and remain
suspended for at least 5 min;
-
.6 the pressure before and after the test after
the weight is removed and while it remains suspended, should be recorded;
and
-
.7 any dimensional deflections or distortions
of the liferaft should be recorded. During the test and after its
completion, the inflatable liferaft should remain suitable for its
intended use.
5.17.11 It should be demonstrated, after
a period of 6 h in a chamber at a temperature of -30°C, that the
liferaft will support a load of 1.1 times the number of persons for
which it is to be approved and its equipment with all relief valves
operative. The liferaft should be loaded with the test weight in the
refrigerated chamber. The floor should not be inflated. The loaded
inflatable liferaft should remain suspended for at least 5 min. If
the inflatable liferaft must be removed from the chamber in order
to suspend it, the inflatable liferaft should be suspended immediately
upon removal from the chamber. During the test and after its completion,
the inflatable liferaft should remain suitable for its intended use.
5.17.12 The inflatable liferaft should be loaded
with a weight equal to the mass of its heaviest equipment pack and
the number of persons for which it is to be approved, the mass of
each person being taken as 82.5 kg. Except for the floor which should
not be inflated, the inflatable liferaft should be fully inflated
with all relief valves operative. A liferaft should be lowered for
a distance of at least 4.5 m in continuous contact against a structure
erected to represent the side of a ship having a 20° adverse list.
The height of the point from which the hook is suspended should be
comparable to that of a shipboard launching appliance. During the
test and after its completion, the liferaft should not sustain damage
or distortion, or assume a position which would render it unsuitable
for its intended purpose.
Material tests
5.17.13
The materials when tested should
meet the following requirements:
-
.1 The fabric should be marked in such a manner
as to allow traceability of the fabric manufacturer and production
lot number.
-
.2
Tests and performance criteria
-
.2.1 Test samples should be randomly selected,
and test pieces cut from each sample as required by the relevant ISO
standard or as otherwise prescribed for each individual test.
-
.2.2
Fabric used for manufacture of buoyancy
tubes, inflatable supports for canopies and floors should meet the
following requirements:
-
.2.2.1
Tensile strength
When tested by the method described in ISO 1421:1998 the tensile
strength should be a minimum of 2255 N/50 mm width for warp and weft.
Maximum elongation, for the above should be 30% over a 200 mm gauge
length, the elongation should be expressed as a percentage of the
initial test length between the jaws. Where two layers of floor fabric
are provided to form an inflatable floor the main floor should be
as specified. The inner/outer layer may have a minimum tensile strength
of 1470 N/50 mm widths in warp and weft direction.
-
.2.2.2
Tear strength
When tested with the apparatus described in ISO 1421:1998, the
tear strength should be 1030 N minimum, in warp and weft directions.
Where two layers of the floor fabric are provided to form an inflatable
floor, the main floor should be as specified. The inner/outer layer
may have a minimum tear strength of 735 N in warp and weft directions.
The preparation of the test specimens should be as follows:
-
.1 from the test sample cut 3 specimens each in
warp and weft directions, 76 ± 1 mm wide and 400 mm long, with
the length closely parallel to the warp and weft yarns. Space the
selection across the full length and width of the sample. Make a 12.5
mm cut across the middle of each specimen at right angles to the length.
-
.2 grip the specimen under test securely and evenly
in the grips, which should be 200 mm apart, so that the specimen length
is closely in the direction of the pull. Operate the machine in accordance
with ISO 1421:1998. The maximum load sustained is recorded as the
wound tear strength and the average for the 3 specimens is calculated.
-
.2.2.3
Surface receptiveness and adhesion
of surface coating
-
.1 When tested by the method described in ISO
2411:2000, the Surface Receptiveness on either face should not be
less than 75 N/50 mm width.
-
.2 For dry Surface Coating Adhesion a minimum
of 75 N/50 mm is required.
-
.3 For wet Surface Coating Adhesion as described
in 2.2.3.8 a minimum of 50 N/50 mm is required.
-
.4 Each coated face should be tested. The specimens
should be made up as in ISO 2411:2000 bonding like coated face to
like coated face.
-
.5 The bonding used and the method of application
should be agreed between the liferaft manufacturer and the finished
fabric manufacturer, and should be the same as those used during the
manufacture of the liferaft.
-
.6 On each test specimen the bonding between the
adhesive or weld and the coating should be initially measured to determine
the surface receptivity.
-
.7 The adhesion of the coating to the base textile
is then measured by cutting through one coating layer to initiate
the required mode of separation.
-
.8 After testing in .4 for adhesion of coating
to the base textile the specimen should be immersed for 24 h in a
3% aqueous solution of sodium chloride at 20EC ± 2EC. At the
end of the immersion period the specimen should be removed from the
solution and while still wet tested by the method specified in ISO
2411:2000.
-
.2.2.4
Effects of ageing
-
.1 Folding Test
When tested as prescribed
below, there should be no cracks, separation of plies or brittleness
visible when the samples are inspected under a magnification of 2.
-
.2 Tensile Test
When tested as prescribed
below, the tensile strength after ageing should be not less than 90%
of the original tensile strength before ageing.
-
.3.1 Ultra-Violet Resistance
This
test should be performed in accordance with the methods specified
in ISO 4892-4:2004 - Open-flame carbon-arc lamps, as follows:
-
.1 Expose the conditioned samples to an enclosed
carbon arc lamp without "Corex D" filters for 100 h. The carbons should
be Copper Clad Sunshine Arc Type, No.22 for the upper pair and No.13
for the lower pair, or equivalent. Only the intended outside surface
of the fabric is to be exposed to the arc in the testing apparatus.
The specimens should be exposed to water spray, with the apparatus
operated so that the specimens are exposed to successive cycles of
102 min of light without spray and 18 min of light with spray. The
black panel temperature should be 80+5°C. The total exposure time
should be 100 h.
-
.2 Test the tensile strength of the material after
exposure following the procedure in .2.2.1. The tensile strength should
be not less than 90% of the original tensile strength before ageing.
-
.3 The exposed material should be bent, more heavily
coated side out, around a 3.2 mm mandrel and examined visually for
cracking. There should be no cracking.
-
.3.2 Alternative Ultra-Violet Resistance
Alternatively, this test may be performed in accordance with
the methods specified in ISO 4892-2:2006 with amendment 1:2009 - Xenon
Arc type testing. The specimens should be exposed under conditions
specified below, using a controlled irradiance water cooled Xenon
Arc apparatus for a total exposure time of 150 h.
Exposure
conditions
|
Dark Cycle (1 h)
|
Light cycle (2 h)
|
|
|
Automatic irradiance
(Filter Q/B)
|
Nil
|
0.55 W/m2 - at 340 nm
|
Black panel
temperature
|
38 ± 2°C
|
70 ± 2°C
|
|
|
Dry bulb
temperature
|
38 ± 2°C
|
47 ± 2°C
|
|
|
Relative humidity
|
95 ± 5%
|
50 ± 5%
|
|
|
Conditioning water
|
40 ± 4°C
|
45 ± 4°C
|
|
|
Water spray
|
60 min on front and back
of specimen
|
40 min - Nil
|
20 - min Front of
specimen only
|
- 60 min Nil
|
Only the intended outside surface
of the fabric should be exposed to the arc. The tensile strength of
the material should be tested after exposure following the procedure
in 2.2.1. The tensile strength should be not less than 90% of the
original strength before ageing. The exposed material should be bent,
with heavily coated side out, around a 3.2 mm mandrel and each coated
face examined visually for cracking. There should be no cracking during
this examination.
The performance requirements specified in this subparagraph
relate to the behaviour of individual specimens under particular conditions
of test. As the spectrum of light from the Carbon Arc differs from
that of the Xenon Arc, caution should be exercised in interpreting
the test results of both methods.
For .1 and .2 cut from the test sample 4 specimens
at least 100 mm square with the sides closely parallel to the warp
and weft threads. Measure the dimensions of two specimens accurately
for .1. For .3, cut two sets of specimens as in .2.2.1.
-
.2.2.5
Low temperature flexing
-
.1 When tested at a temperature no higher then
-50EC by the method prescribed below, there should be no visible cracking
of the sample when inspected under a magnification of 2. The test
should be independently applied to each face of the coated fabric.
-
.2 The apparatus, preparation of test specimens
and test procedure should be as described in ISO 4675:1990, except
that:
-
.1 when tested at the specified low temperature,
no specimen should show cracks; and
-
.2 there should be 6 test specimens, 3 cut with
the long side closely parallel to the warp and 3 cut with the long
side closely parallel to the weft direction.
-
.2.2.6
Flex cracking
After the specimen has been conditioned by exposing the outer
face to a 3% aqueous solution of sodium chloride for seven days at
20E ± 2EC, it should be tested as described in ISO 7854:1995.
After 200,000 flexings, no cracking or delamination should be visible
when inspected under a magnification of 2.
-
.2.2.7
Porosity
When tested by the method prescribed below and with a pressure
of 27.5 kPa applied and maintained beneath the fabric, there should
be no signs of any leakage over a minimum period of 5 min.
-
.2.2.8
Oil resistance
-
.1 When tested by the method prescribed
below, after exposing the outer surface to oil IRM 901, for 2 h at 20±
2°C, there should be no separation of coating from textile and no
residual tackiness when two exposed faces are pressed together. The
coating should not smear when rubbed with a single pass of the
finger.
-
.2 The test should be carried out not
less than 16 h after vulcanization or curing.
-
.3 The apparatus, preparation of
specimens and test procedure should be in accordance with ISO
15372:2000/Amd 1:2021, paragraph 6.2.5. Each coated face should be
tested.
-
.2.2.9
Weft distortion
The weft distortion should be not more than the equivalent of
100 mm maximum over a fabric width of 1.5 m. A line should be drawn
across the fabric at right angles to the selvedge. The weft distortion,
skew and/or bow should be measured.
-
.2.2.10
Resistance to blocking
-
.1 When tested by the method prescribed below,
the fabric should exhibit no blocking.
-
.2 The preparation of specimens and test procedure
should be in accordance with ISO 5978:1990 except that the duration
of time under load should be 7 days.
-
.2.2.11
Hydrolysis resistance for thermoplastic
coated materials only
-
.1 When tested by the methods prescribed below,
the following performance values should be achieved:
.1
|
Coating
adhesion
|
50 N/50mm
minimum
|
.2
|
Blocking
resistance
|
100 g
maximum
|
.3
|
Folding test
|
No cracks,
delamination or visual deterioration
|
-
.2 The following test requirements should apply
to fabrics or test specimens which have been stored for 12 weeks over
water in a closed container at 93EC.
-
.3 The following test should be performed after
drying the specimens for 1 h at 80 ± 2°C, and conditioning
at 20 ± 2°C, 65% RH for 24 h.
-
.4 The coating adhesion of the stored material
specimen should be made up and tested in accordance with .2.2.3 after
the requirements of .2.2.11.2 above have been carried out.
-
.5 The blocking resistance should be tested in
accordance with .2.2.10.
-
.6 Two test samples 100 mm ± 2 mm square
should be cut from the stored material. The samples should be folded
as defined in .2.2.4.6.3 and examined for evidence of cracks, ply
separation, stickiness or brittleness.
-
.2.2.12
Ozone resistance
-
.1 When tested by the method prescribed below,
no cracks should be visible at a magnification of 5.
-
.2 The preparation of samples and test procedure
should be in accordance with specification ISO 3011:1997.
The
following conditions should apply:
.1
|
Ozone
concentration
|
50 pphm
|
.2
|
Temperature
|
20 ± 2°C
|
.3
|
Exposure
time
|
8 h
|
.4
|
Mandrel
diameter
|
6 × sample
thickness
|
-
.2.3
Fabric used for the manufacture of
outer canopies should meet the following requirements:
-
.2.3.1
Tensile strength
When tested by the method prescribed in .2.2.1, the tensile
strength should be minimum 930N/50 mm of width in warp and weft directions.
-
.2.3.2
Tear strength
When tested by the method prescribed in .2.2.2, the tear strength
should be minimum 490 N in warp and weft directions.
-
.2.3.3
Low temperature flexing
When tested at a temperature not higher than -30EC by the method
prescribed in .2.2.5, there should be no visible cracking of the sample
when inspected under a magnification of 2.
The test should be independently applied to each face of the
coated fabric.
-
.2.3.4
Waterproofness
-
.1 When tested by the method prescribed below,
no water should pass through the cone within 30 min. The coated fabric
should not contain any material that is known to be injurious to a
survivor drinking rainwater collected from the canopy.
Fabrics
may be coated on one or both sides.
-
.2 The test specimen should be cut to a size of
300 mm × times; times; times; 300 mm and tested in accordance
with the following procedure:
Fold the specimen twice
at right angles and open it out into the form of a cone. Secure the
cone with a paper clip and insert it into a suitable funnel supported
on a flask. Pour 500 ml of water into the cone. Record any penetration
of water to the outside of the cone after 30 min.
-
.2.3.5
Surface receptiveness and adhesion
of surface coating
When tested by the method prescribed in .2.2.3, the surface
receptiveness on either face should not be less than 25 N/50 mm width
surface.
For coating adhesion a minimum of 25 N/50 mm is required.
-
.2.3.6
Colour
The liferaft canopy should be evaluated after the mooring out
test in 5.5 or an equivalent
method using artificial light to determine whether the coating is
sufficiently colour fast.
-
.2.3.7
Effects of ageing
-
.1 Folding Test.
When tested by the
method prescribed in .2.2.4, there should be no cracks, separation
of plies or brittleness visible when the samples are inspected under
a magnification of 2.
-
.2 Tensile Test.
When tested by the
method prescribed in .2.2.4, at least 90% of the original tensile
strength should be retained in both warp and weft directions.
-
.2.4
Fabric used for the manufacture of
inner canopies should meet the following requirements:
-
.2.4.1
Tensile strength
When tested by the method prescribed in .2.2.1, the tensile
strength should be minimum 100 N/50 mm of width in warp and weft directions.
-
.2.4.2
Porosity
As the inner canopy serves as a barrier to provide a static
layer of air, it should either be of a close weave construction or
have a low porosity to air.
5.18 Additional tests
applicable to automatic self-righting liferafts only
5.18.1 Rigid automatic self-righting liferafts
should be tested to the righting test in 5.17.2.1 and 5.17.2.2.
5.18.2 A suitable means should be provided to
rotate the liferaft about a longitudinal axis to any angle of heel
in calm water and then release it. The liferaft should be fully equipped,
with no one on board, with entrances and openings in the as-packed
condition and, in the case of an inflatable liferaft, fully inflated.
The liferaft should be incrementally rotated to angles of heel up
to and including 180° and should be released After release, the
liferaft should always return to the upright position without any
assistance. Righting action should be positive and continuous, and
complete righting should occur within the time difference between
the liferaft reaching boardable shape, as determined by 5.17.3.1, at ambient temperature,
and 1 min.
5.19 Submergence test
for automatically self-righting and canopied reversible liferafts
The liferaft and, if inflatable in its packed condition,
should be submerged to a depth of at least 4 m. A rigid liferaft should
be released at this depth, and, if an inflatable liferaft, initiate
inflation at this depth. The liferaft should float to the surface
and come to its designed operational condition ready to be boarded
from the sea in a sea state of at least 2 m significant wave height
in association with a wind force of Beaufort force 6.
5.20 Wind velocity tests
5.20.1 The Administration should from a range
of liferafts require at least:
-
.1 one liferaft from a range 6 to 25 persons capacity,
provided the material and construction arrangements are similar; and
-
.2 each liferaft greater than 25 persons capacity,
except in the case where it can be shown that the material and construction
arrangements deem this unnecessary,
to be tested under the conditions of wind velocity given in
following paragraphs.
5.20.2 The liferaft or liferafts in the packed
condition with the entrance so arranged that it will be open on inflation,
but without the container, should be inflated in a wind velocity of
30 m/s and should be left in this condition for 10 min.
5.20.3 During the above-mentioned conditions,
whenever practicable, the liferaft or liferafts should be swung over
approximately 30E to starboard, from that position to approximately
30E to port and return to the starting position.
5.20.4 On completion of these first stage tests,
there should be no detachment of the arch support or canopy from the
upper buoyancy tube or other damage which affects the efficient function
of the liferaft.
5.20.5 Then the liferaft or liferafts should be
exposed to the above-mentioned wind velocity for 5 min in each of
the following conditions:
-
.1 with the entrance to the wind open and the
other entrances closed, if there is more than one entrance;
-
.2 with the entrance to the wind closed and the
other entrances open, if there is more than one entrance; and
-
.3 with all entrances closed.
The liferaft or liferafts should show no sign of damage affecting
its/their efficient function as a result of this test.
5.21 Test for self-draining
of floors of canopied reversible liferafts and automatically self-righting
liferafts
5.21.1 Water should be pumped into the interior
of the liferaft, while it is afloat, at a rate of 2300 l per
minute for 1 min.
5.21.2 After the water has been shut off and has
drained, there should be no appreciable accumulation of water in the
liferaft.
5.21.3 If a liferaft is divided into separate
areas, by thwarts or other means, each such area should be subjected
to the test.
5.22 Liferaft light
tests
5.22.1 The liferaft lights should be subjected
to the tests prescribed in 10.1.
|
