4 Installation

 Hoses should be installed in accordance with the manufacturers instruction, having regard to: minimum bend radius, twist angle and orientation, also support where necessary. In locations where hoses are likely to suffer external damage, adequate protection should be provided. After installation, the system should be operated at maximum pressure and checked for possible malfunctions and freedom from leaks. General installation guidelines are given in figures 2.1 and 2.2.

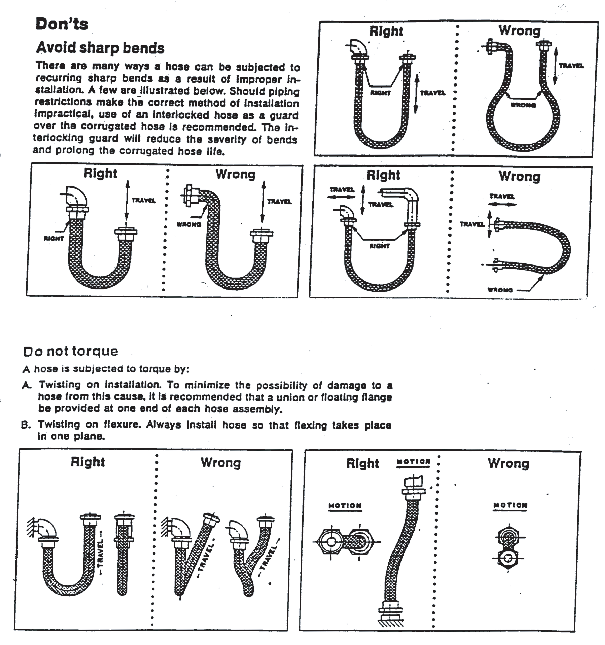

Figure 2.1 Metallic Flexible Hose General Installation Guidelines

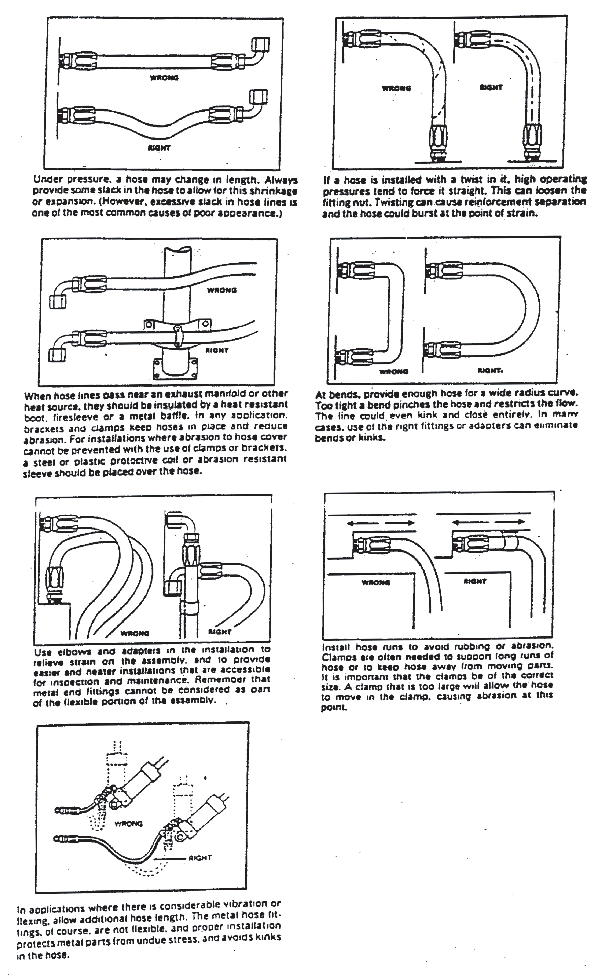

Figure 2.2 Non-Metallic Flexible Hose General Installation Guidelines

Parent topic: Appendix 2 - Flexible Hose and Flexible Hose Assemblies
