5.3 Ship's dimensions

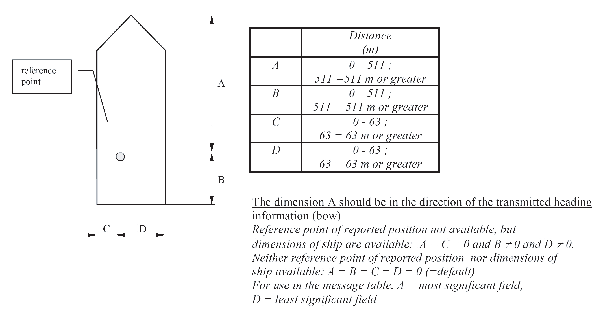

 Ship's dimensions should be entered using the overall length and width of the ship indicated by the values A, B, C, and D in the following figure.

Ship's dimensions (A+B and C+D) should be identical when entering internal and external reference points.

Figure A

 In the rare case of an EPFD antenna installed in the portside corner of a rectangular bow, the values A and C would be zero. Should this be the case, one of these values should be set to 1 in order to avoid misinterpretation as "not available" because A=C=0 is used for that purpose.
