3.5 Special requirement for segregation

Parent topic: 3 Stowage and Segregation of Cargo Transport Units Containing Dangerous Goods

3.5.1 Special requirement for segregation and stowage of CTUs on partially weathertight hatchway covers without effective gutterbars

 Where "not in the same vertical line unless separated by a deck" is required in the IMDG Code, the following applies:

  • .1 when the reference CTU is stowed on deck in positions specified by "A" in figures 3.2.3-1 and 3.2.3-2, CTUs containing incompatible dangerous goods should not be stowed within the relevant sensitive vertical lines under deck. Examples are illustrated in figures 3.5.1-1 and 3.5.1-2; and

  • .2 when the reference CTU is stowed under deck in positions as specified by "C" in figures 3.2.3-1 and 3.2.3-2, CTUs containing incompatible dangerous goods should not be stowed on the hatches above the hold. Example is illustrated in figure 3.5.1-3.

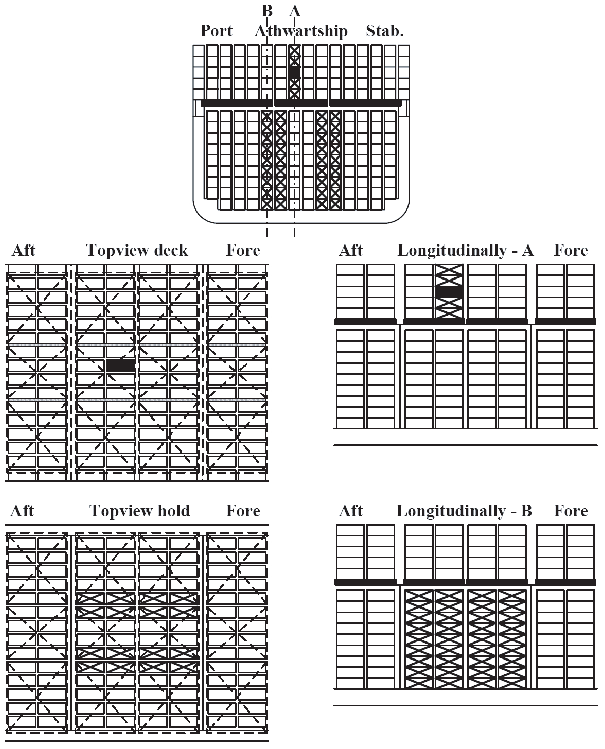

Figure 3.5.1-1 Example of segregation within sensitive vertical lines (reference CTU is above left hatchway cover)

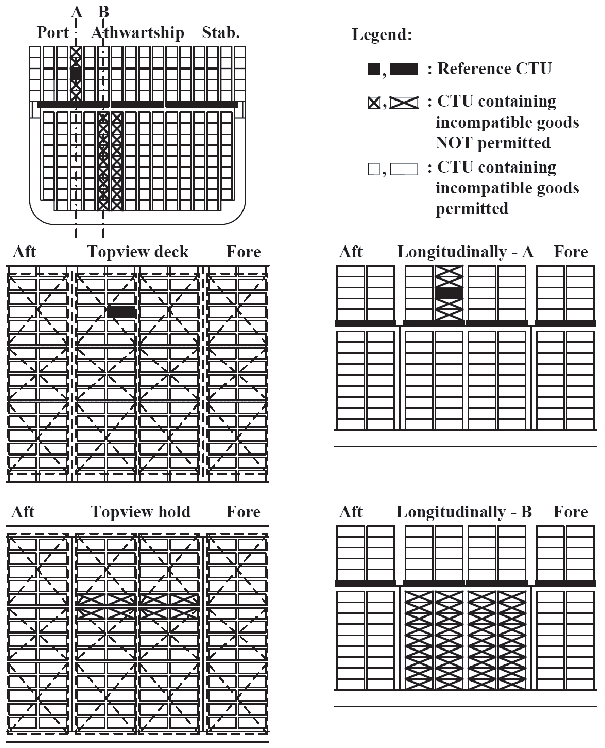

Figure 3.5.1-2 Example of segregation within sensitive vertical lines (reference CTU is above centre hatchway covers)

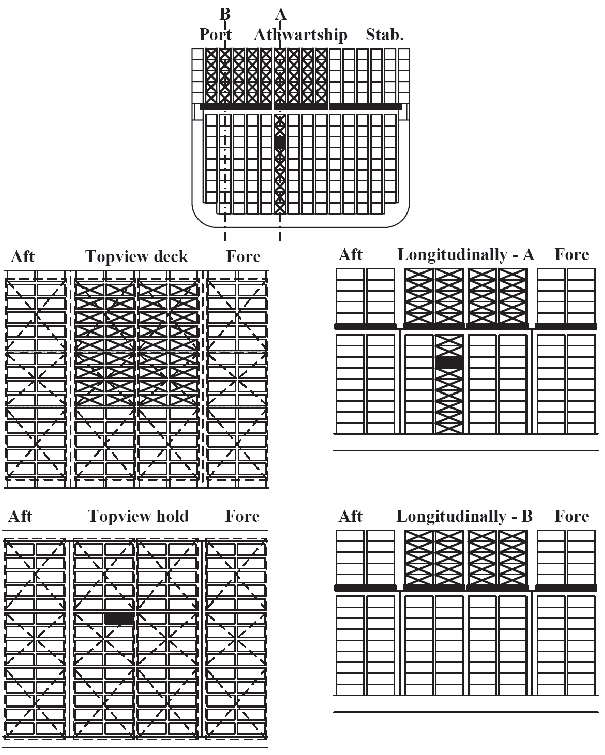

Figure 3.5.1-3 Example of segregation within sensitive vertical lines (reference CTU is in sensitive vertical line under deck)

3.5.2 Segregation of CTUs related to hatchway covers with effective gutterbars

 Where hatchway covers are fitted with effective gutterbars, segregation of CTUs containing dangerous goods on board containerships should be in accordance with the segregation requirements in paragraph 7.2.3.2 of the IMDG Code for containerships.
