Section 7.4.1.3 Appendages not intended to be of fire-restricting or non-combustible material

 This paragraph is only intended to apply to the main structure of the craft. Appendages such as air propellers, air ducts to propellers, transmission shafts, rudders and other control surfaces, struts, spars, flexible skirts, etc., are not intended to be of fire restricting or non-combustible material, therefore 7.4.1.3 should not apply to them.

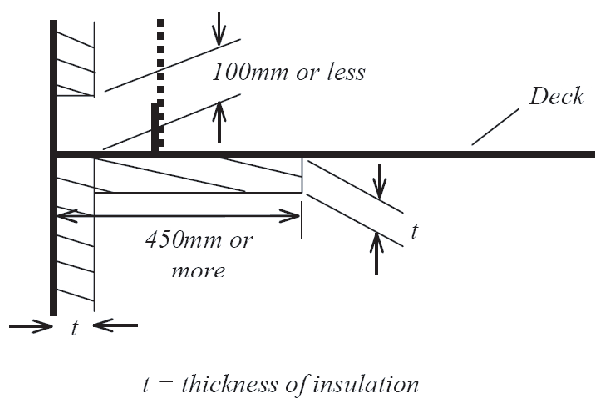

Figure 7.3-1

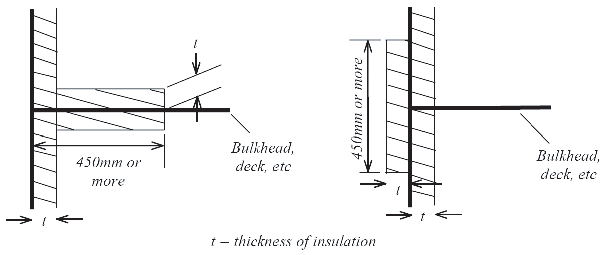

Figure 7.3-2

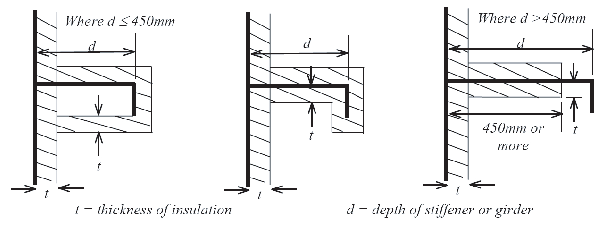

Figure 7.3-3
