Statutory Documents - IMO Publications and Documents - Resolutions - Assembly - IMO Resolution A.654(16) – Graphical Symbols for Fire Control Plans – (Adopted on 19 October 1989) - Annex - Symbols1 for Use in Accordance with Regulation II-2/20 of the 1974 SOLAS Convention, as Amended
Annex - Symbols footnote for Use in Accordance with Regulation II-2/20 of the 1974 SOLAS Convention, as Amended
| fire control plan |
|
sprinkler section valve |
|
||
| push-button/switch for fire alarm |
|
CO2 battery |
|
||
| horn fire alarm |
|
space protected by CO2 |
|
||
| bell fire alarm |
|
CO2 horn |
|
||
| manually operated call point |
|
CO2 release station |
|
||
| space protected by automatic fire alarm |
|
halon 1301 battery |
|
||
| fire alarm panel |
|
space protected by halon 1301 |
|
||
| sprinkler installation |
|
halon horn |
|
||
| space protected by sprinkler |
|
halon release station |
|
||
| sprinkler horn |
|
halon 1301 bottles placed in protected area |
|
||
| powder installation |
|
hose box with spray/jet fire nozzle |
|
||
| powder monitor (gun) |
|
international shore connection |
|
||
| powder hose and handgun |
|
fire pump |
|
||
| powder release station |
|
emergency fire pump |
|
||
| foam installation |
|
remote controlled fire pumps or emergency switches |
|
||
| foam monitor (gun) |
|
bilge pump |
|
||
| foam nozzle |
|
emergency bilge pump |
|
||
| space protected by foam |
|
water monitor (gun) |
|
||
| foam valve |
|
water fog applicator |
|
||
| foam release station |
|
drenching installation |
|
||
| fire main with fire valves |
|
space protected by drenching system |
|
||
| section valves drenching system |
|
A class division |
|
||

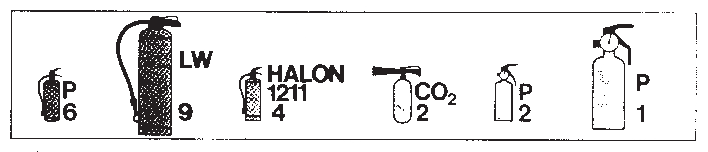

| portable fire extinguishers |
|
||||

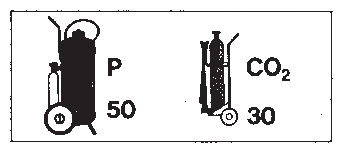

| wheeled fire extinguishers |
|
B class division |
|
||
| fire damper in vent duct |
|
remote controlled skylights |
|
||
| fire station |
|
remote controlled fuel/ lubricating oil valves |
|
||
| locker with fireman's outfit |
|
control station |
|
||
| locker with additional breathing apparatus |
|
portable foam applicator |
|
||
| locker with additional protective clothing |
|
inert gas installation |
|
||
| primary means of escape |
|
high expansion foam supply trunk |
|
||
| secondary means of escape |
|
C02/nitrogen bulk installation |
|
||
| emergency generator |
|
emergency switchboard |
|
||
| A class fire door |
|
remote ventilation shut off |
|
||
| A class fire door |
|
main vertical zone |
|
||
| A class fire door self-closing |
|
smoke detector |
|
||
| A class fire door self-closing |
|
heat detector |
|
||
| B class fire door |
|
gas detector |
|
||
| B class fire door |
|
flame detector |
|
||
| B class fire door self-closing |
|
emergency telephone station |
|
||
| B class fire door self-closing |
|
fire axe |
|
||
| closing appliance for exterior ventilation inlet or outlet |
|
||||
