Section 2.6.8.2.2 Assumed shape of damage

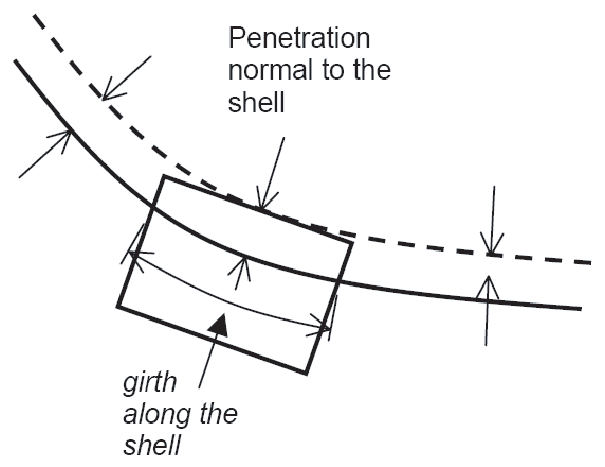

 The shape of damage should be assumed to be rectangular in the transverse plane as illustrated in figure 2.6.8 below. Damage should be assumed at a series of sections within the defined longitudinal extent in accordance with figure 2.6.8, the mid-point of the damaged girth being maintained at a constant distance from the centreline throughout that longitudinal extent.

Figure 2.6.8

Parent topic: Annex 1 - Interpretations of Provisions of the 2000 HSC Code
