Appendix 2 - Friction Coefficients in Cross-flooding Arrangement

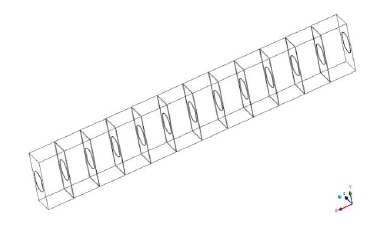

 Figure 13 Cross-flooding through a series of structural ducts with 1 manhole

k = 0.2748 • Li + 0.0313 if 0 < L < 1i
k = —0.0986 • Li 3 + 0.6873 • Li 2 – 1.0212 • Li + 0.7386 if 1 ≤ Li ≤ 4
k = 1.34 if Li > 4

Note: k is the friction coefficient related to each space between two adjacent girders. k is evaluated with effective cross-section area therefore in calculations use the real cross-section area A and not Sequiv. The pressure loss for entrance in the first manhole is already computed in the calculation, and k = 1 has to be added to take into account the outlet losses.

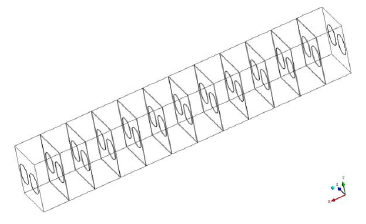

Figure 14 Cross-flooding through a series of structural ducts with 2 manholes

k = 0.4045 • Li + 0.0627 if 0 < L < 1i < 1
k = 0.0424 • Li 3 – 0.3593 • Li 2 + 1.1401 • Li – 0.356 if 1 ≤ Li ≤ 4
k = 1.17 if Li > 4

  Note: k is the friction coefficient related to each space between two adjacent girders. k is evaluated with effective cross-section area therefore in calculations use the real cross-section area A and not Sequiv. The pressure loss for entrance in the first manhole is already computed in the calculation, and k = 1 has to be added to take into account the outlet losses.
