Appendix 1

NAME OF ADMINISTRATION
CERTIFICATE OF TYPE APPROVAL FOR 15 PPM BILGE SEPARATOR
This is to certify that the 15 ppm Bilge Separator listed below has been examined and tested in accordance with the requirements of the specifications contained in part 1 of the annex to the guidelines and specifications contained in IMO Resolution MEPC.107(49). This certificate is valid only for 15 ppm Bilge Separator referred to below.
15 ppm Bilge Separator supplied by
..............................................................................................................................................
Under type and model designation
and incorporating: ................................................................................................................
*15 ppm Bilge Separator manufactured
by to specification/assembly drawing No ............ ....................................................... date
* Coalescer manufactured by
to specification/assembly drawing No .................................................................................
*Filters manufactured by other means
to specification/assembly drawing No .................................................................................
*Other means
to specification/assembly drawing No .................................................................................
Control equipment manufactured by to specification/assembly drawing No .........................................................................................
Supply pump capacity .............................. m3/h ............................. Motor kW rating ................................................... kW ....................................
Maximum throughput of system ............................................ m3/h ................
If integral feed pump is not fitted state method proposed for ensuring maximum throughput of system is not exceeded
..............................................................................................................................................
A copy of this Certificate should be carried aboard a vessel fitted with this Separator at all times.
Limiting conditions imposed ................................................................................................
Test date and results attached in the appendix.
Official stamp Signed ....................................................................................
  Administration of ....................................................................
  Date this ............................. day of ............................. 20 .....
* Delete as appropriate.
TEST DATA AND RESULTS OF TESTS CONDUCTED ON A 15 PPM BILGE SEPARATOR IN ACCORDANCE WITH PART 1 OF THE ANNEX TO THE GUIDELINES AND SPECIFICATIONS CONTAINED IN IMO RESOLUTION MEPC.107(49)
15 ppm Bilge Separator submitted by
..............................................................................................................................................
Test location ........................................................................................................................
Method of sample analysis ..................................................................................................
..............................................................................................................................................
..............................................................................................................................................
..............................................................................................................................................
Samples analysed by ..........................................................................................................
Environmental testing of the electrical and electronic sections of the 15 ppm Bilge Separator has been carried out in accordance with part 3 of the annex to the guidelines and specifications contained in IMO resolution MEPC.107(49). The equipment functioned satisfactorily on completion of each test specified on the environmental test protocol.
..............................................................................................................................................
..............................................................................................................................................
..............................................................................................................................................
..............................................................................................................................................
Test fluid "A"
  Density at 15°C
  Viscosity Centistokes at 100°C
  Flashpoint °C
  Ash content %
  Water content at start of test %
Test fluid "B"
  Density at 15°C
  Viscosity Centistokes at 40°C
  Flashpoint °C
  Ash content %
  Water content at start of test %
Test fluid "C"
  Surfactant - documentary evidence*
  Iron oxides - documentary evidence*
Test water
  Density at 20°C
  Solid matter present
Test temperatures
  Ambient °C
  Test fluid "A" °C
  Test fluid "B" °C
  Test fluid "C" °C
  Test water °C
Diagram of test rig attached
Diagram of sampling arrangement attached

* Certificate or laboratory analysis.

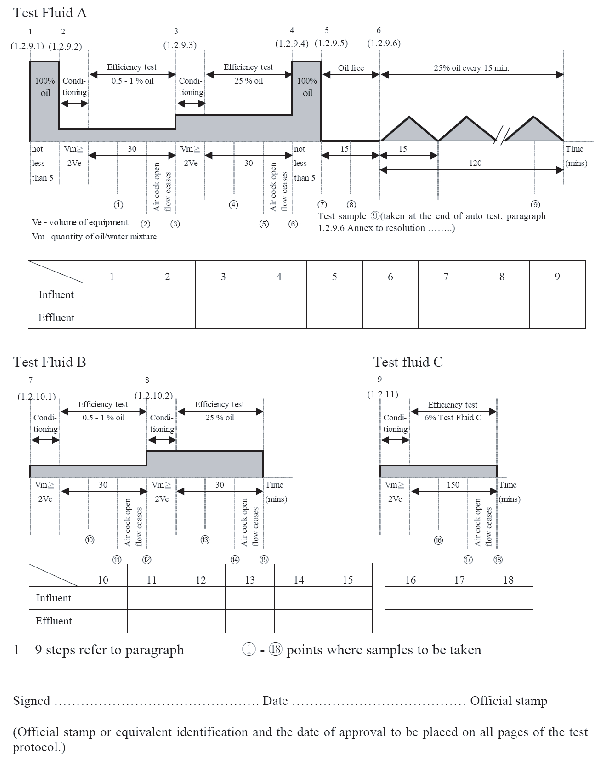

Test Results (in PPM) and Test Procedures
