Appendix - Explanatory Sketches

Clasification Society 2024 - Version 9.40

Statutory Documents - IMO Publications and Documents - Circulars - Maritime Safety Committee - MSC/Circular.847 – Interpretations of Vague Expressions and other Vague Wording in SOLAS Chapter II-2 – (Adopted on 12 June 1998) - Annex - Interpretations of Vague Expressions and Other Vague Wording in SOLAS Chapter II-2 - Appendix - Explanatory Sketches

Appendix - Explanatory Sketches

This appendix contains explanatory sketches to some interpretations of regulations in chapter II-2 of the 1974 SOLAS Convention as follows:

Regulation 26.4:	Heat transmission at intersections
Regulations 45.1.2.1/1.2.2:	Escape routes (figures 1 and 2)
Regulation 46.1:	Staircases (figures 1, 2.1 and 2.2)
Regulation 56:	Corner-to-corner situation in a cofferdam
Regulation 62.13.4.1:	Isolation arrangements in inert gas main

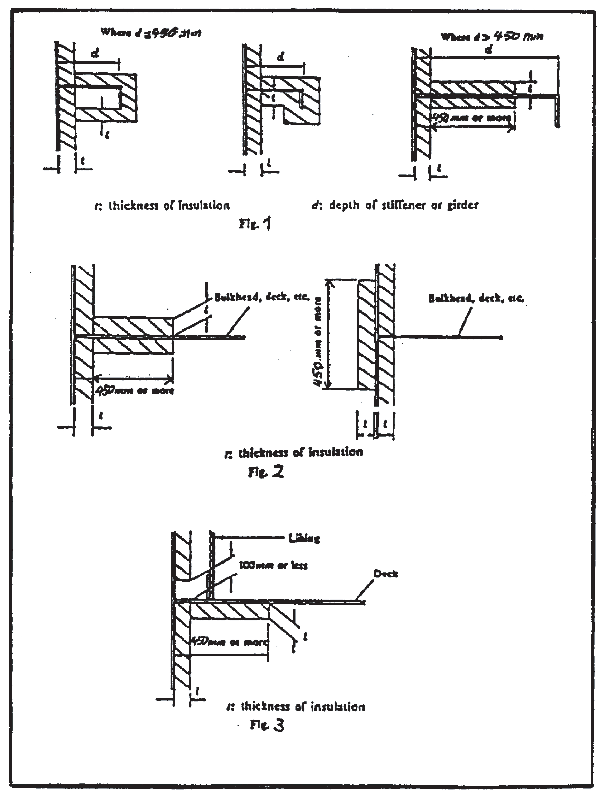

Figures 1 to 3 Heat transmission at intersections

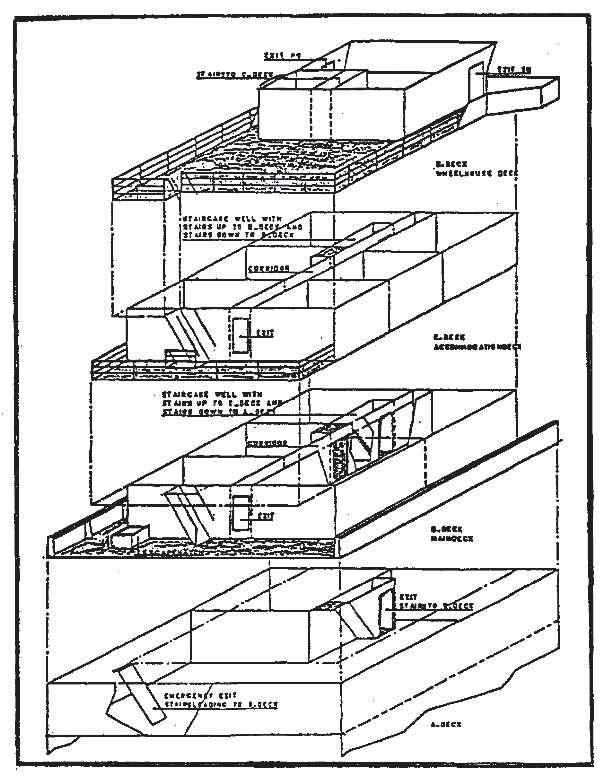

Figure 1 Escape routes

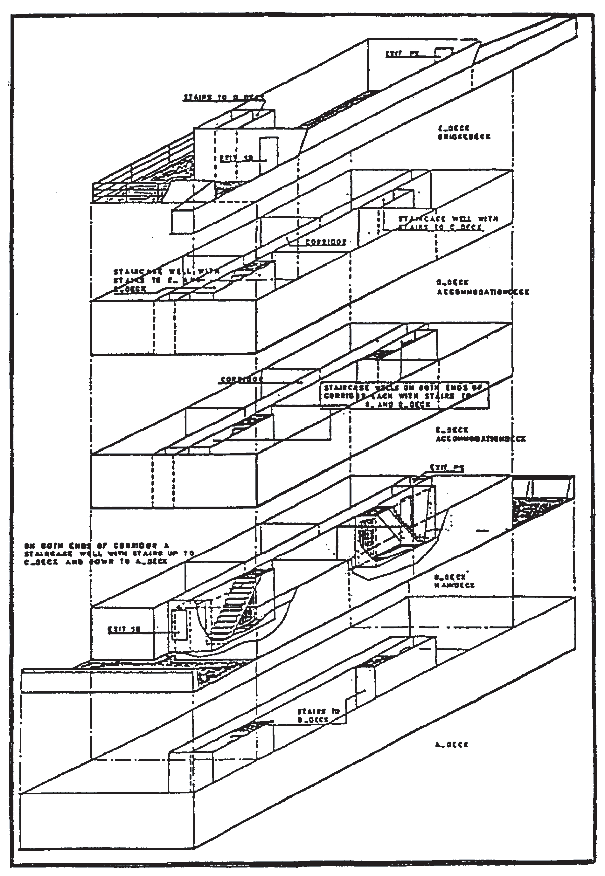

Figure 2 Escape routes

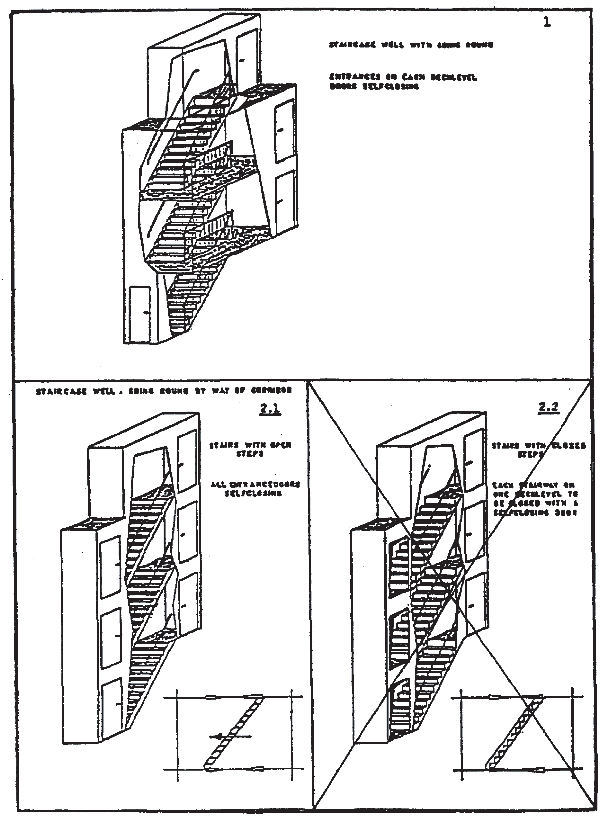

Figure 1 Staircases

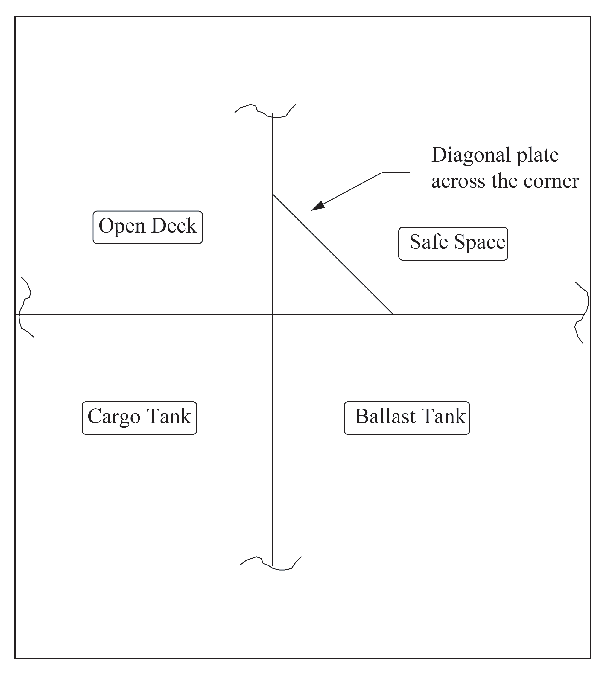

Figure 1 Corner-to-corner situation in a cofferdam

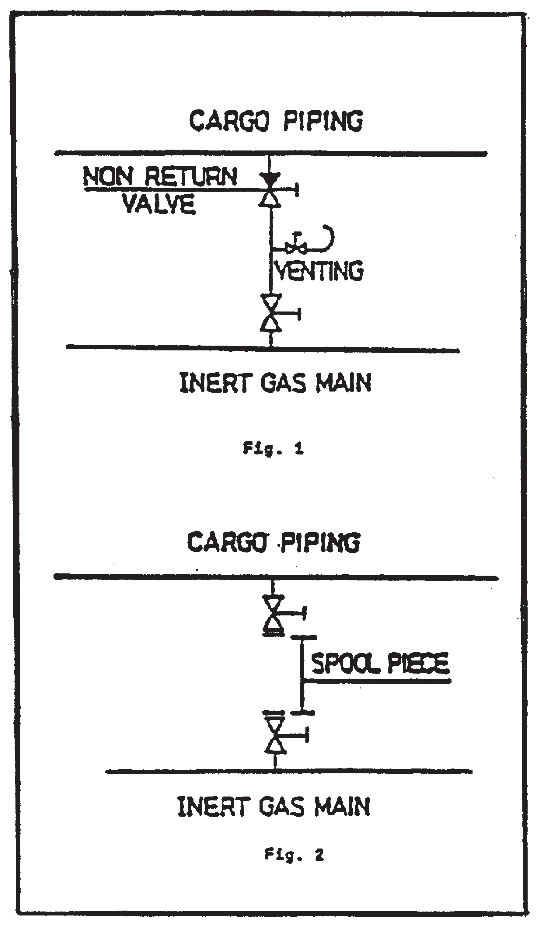

Figure 1 to 2 Isolation arrangements in inert gas main
