Calculation of outflow in case of bottom damage as per 5.3 of the IMO Guidelines

.12 Width of tank i, b_i:

for tanks adjacent to the side shell, b_i is the width of the tank, measured inboard at 1_i/2, at right angle to the centre line and at the level of the maximum assigned summer load line
for a centre tank, b_i is the width of the tank bottom measured at 1_i/2.

.13 Width of the cargo tank area, B_t:

B_t is the maximum breadth as defined by Annex I, Regulation 1(21) measured within L_t.

.14 Height of double bottom, h_i:

h_i is the minimum height of the double bottom measured from the baseline.

Refer to figures 2 and 3.

.15 Height of the cargo column above the cargo tank bottom, h_c:

h_c is the height of the cargo column measured from the cargo tank bottom at the point where h_i is measured. Refer to figure 2.

Where a double bottom does not exist, then h_c is to be taken at its maximum value considering any deadrise of the ship. Refer to figure 3.

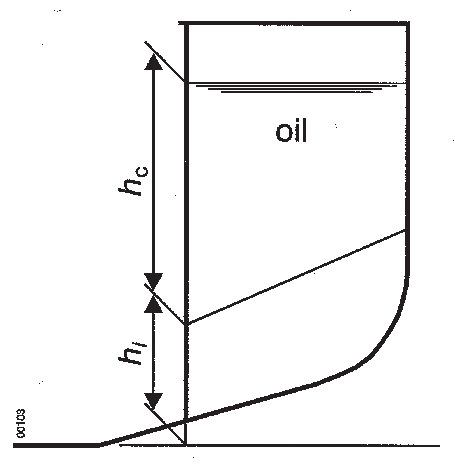

Figure 2 Height of cargo column above tank bottom

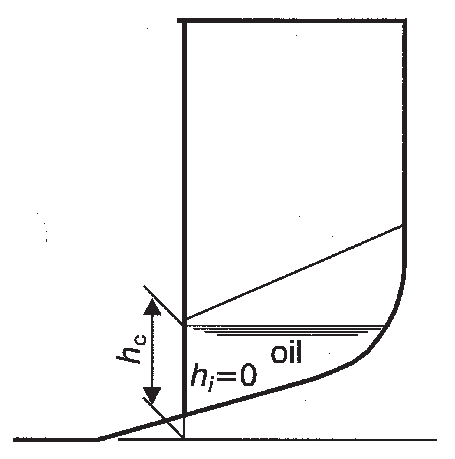

Figure 3 Height of cargo column without double bottom
