1 Casualty records indicate that ships which are
not designed to classification rules for navigation in ice and which
operate in slush ice conditions are prone to blockage of the seawater
cooling intakes and related air vents by slush and/or spray ice. Such
blockage has resulted in loss of cooling water to the ship's main
engine and/or generators, as well as structural damage to air vents
or tanks upon continued operation of water pumps after vent blockage.
Incidents have ranged from minor vessel delays to complete power failures
which, in some cases, have resulted in groundings.
2 It is common practice to provide a supply of
low pressure steam or compressed air to maintain clear cooling water
intakes. However, experience has shown that such arrangements will
not maintain clear inlets on ships operating in anything but the lightest
ice conditions.
3 The following guidelines provide a suitable
method to ensure that cooling water flow is maintained to the ship's
engine and/or generator under such conditions:
-
.1 The ship should be provided with at least one
sea bay from which pumps supplying cooling water to essential machinery
can draw.
-
.2 The sea bay should:
-
.2.1 be supplied with water from at least two
sea inlet boxes;
-
.2.2 be connected to the sea inlet boxes by pipes,
valves and strainers with a cross sectional area at least equal to
the total area of the suctions served by the sea bay; and
-
.2.3 be vented to atmosphere by a valved pipe
of sufficient size to prevent tank over pressurization or under pressurization.
-
.3 The sea inlet boxes should:
-
.3.1 be fitted on each side of the ship;
-
.3.2 be as deeply submerged as possible;
-
.3.3 have an area open to the sea of at least
five times the total area of the pump suctions served by the sea bay;
-
.3.4 be fitted with a strainer plate at the ship's
side having perforations approximately 20 mm diameter to prevent ingress
of large ice particles;
-
.3.5 be fitted with a low pressure steam connection
for clearing the strainer;
-
.3.6 have the vent pipe from the sea inlet sized
to prevent ice blockage in the suction piping. On small installations,
the cross sectional area should be at least equal to that of the suction
piping. In the case of larger installations, the ratio may be reduced,
but the minimum diameter recommended is 150 mm. The valve fitted should
be of a full flow type; and
-
.3.7 have the valves meet the requirements of
SOLAS regulation II-1/48.3,
protection against flooding, when used in unattended machinery space
applications.
-
.4 Diversion valves and piping should be provided
at overboard cooling water discharges to permit warm water to be returned
to the sea inlet boxes preventing ice blockages, and also to the sea
bay to permit circulation in the event of total sea box blockage by
ice.
4 Certain operating areas are noted for heavy
spray ice accumulation during winter and precautions should be taken
to avoid structural damage due to blockage of air pipes by spray ice.
Air pipes serving cooling systems should be positioned in protected
areas or heat traced as a preventive measure.
5 The attached sketch illustrates
the layout of a recommended system.

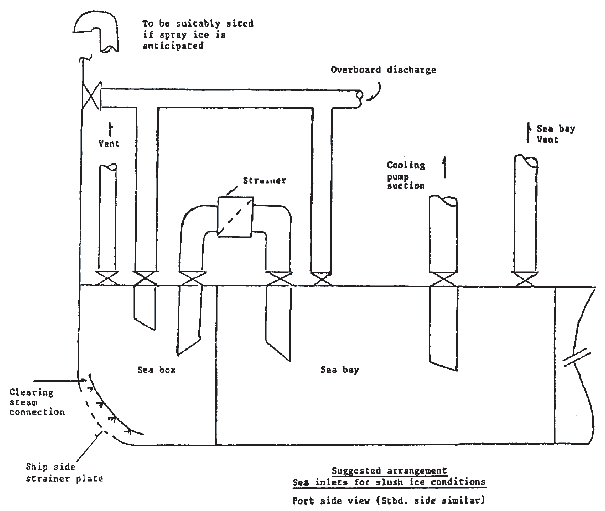

Figure 1 Suggested arrangement - Sea Inlets for slush ice conditions - Port side
view (Stbd. side similar)
