International Convention on Load Lines, 1966
|
Record of Conditions of Assignment
|
Name of
ship.........................................................................................................................
|
Port of
registry......................................................................................................................
|
Nationality..............................................................................................................................
|
Distinctive number or
letters.................................................................................................
|
Shipbuilders..........................................................................................................................
|
Yard
number.........................................................................................................................
|
Date of
construction/conversion...........................................................................................
|
Freeboard assigned as a ship of
Type.................................................................................
|
Classification........................................................................................................................
|
Date and place of initial
survey.............................................................................................
|
A plan of suitable size may be
attached to this Report in preference to sketches on this page.

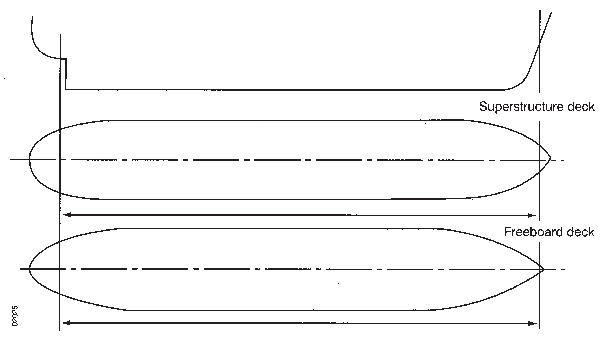

Disposition and
dimensions of superstructures, trunks, deckhouses, machinery casings; extent of
bulwarks, guard rails and wood sheathing on exposed deck, to be inserted in the diagrams
and tables following; together with positions of hatchways, gangways and other means for
the protection of the crew; cargo ports, bow and stern doors, sidescuttles, scuppers,
ventilators, air pipes, companionways, and other items that would affect the
seaworthiness of the ship.
![](GUID-2D2D582B-99FE-45D2-859F-8C8679A96B79-low.png)
Doorways in superstructures, exposed machinery casings and deckhouses protecting
openings if freeboard and superstructure decks (Regulations 12, 17 and 18)
Location
|
Ref. No.
on sketch or plan
|
Number and
size of openings
|
Height of
sills
|
Closing appliances
|
Type and
material
|
Number of
clips
|
In forecastle
bulkhead
|
|
|
|
|
|
In bridge forward
bulkhead
|
|
|
|
|
|
In bridge after
bulkhead
|
|
|
|
|
|
In raised
quarter-deck bulkhead
|
|
|
|
|
|
In poop
bulkhead
|
|
|
|
|
|
In exposed machinery
casings on freeboard or raised quarter-decks
|
|
|
|
|
|
In
exposed machinery casings on superstructure decks
|
|
|
|
|
|
In
machinery casings within superstructures or deckhouses on freeboard
deck
|
|
|
|
|
|
In
deckhouses in Position 1 enclosing openings leading below freeboard
deck
|
|
|
|
|
|
In
deckhouses in Position 2 enclosing openings leading within enclosed
superstructures or below freeboard deck
|
|
|
|
|
|
In
exposed pump-room casings
|
|
|
|
|
|
Hatchways at positions 1 and 2 closed by portable covers and secured weathertight by
tarpaulins and battening devices (Regulation 15)
Position and Reference No. on sketch or plan
|
|
|
|
|
|
|
Dimensions of clear opening at top of coaming
|
|
|
|
|
|
|
Height of
coamings above deck
|
|
|
|
|
|
|
PORTABLE BEAMS
|
Number
|
|
|
|
|
|
|
|
Spacing
|
|
|
|
|
|
|
b
1 × t
f
|
|
|
|
|
|
|
D × t
w
|
|
|
|
|
|
|
b
2 × t
f
|
|
|
|
|
|
|
Bearing surface
|
|
|
|
|
|
|
Means of securing each beam
|
|
|
|
|
|
|
PORTABLE COVERS
|
Material
|
|
|
|
|
|
|
Thickness
|
|
|
|
|
|
|
Direction fitted
|
|
|
|
|
|
|
Bearing surgace
|
|
|
|
|
|
|
Spacing
of cleats
|
|
|
|
|
|
|
TARPAULINS
|
No. of layers
|
|
|
|
|
|
|
Material
|
|
|
|
|
|
|
Means of securing each section of covers:
Are wood covers fitted with galvanized end bands?
Hatchways at positions 1 and 2 closed by weathertight covers of steel (or other
equivalent material) fitted with gaskets and clamping devices (Regulation 16)
Position and Reference No. on sketch or plan
|
|
|
|
|
|
|
Dimensions of clear opening at top of
coaming
|
|
|
|
|
|
|
Height of coamings above deck
|
|
|
|
|
|
|
Type of cover or patent name
|
|
|
|
|
|
|
Material
|
|
|
|
|
|
|
Machinery space openings and miscellaneous openings in freeboard and superstructure
decks (Regulations 17 and 18)
Positions and Reference No. on sketch or plan
|
|
|
|
|
|
|
Dimensions
|
|
|
|
|
|
|
Height of
coaming
|
|
|
|
|
|
|
COVER
|
Material
|
|
|
|
|
|
|
How attached
|
|
|
|
|
|
|
Number
and spacing of toggles
|
|
|
|
|
|
|
|
Position
and Reference No. on sketch or plan
|
|
|
|
|
|
|
Dimensions
|
|
|
|
|
|
|
Height
of coaming
|
|
|
|
|
|
|
COVER
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Number
and spacing of toggles
|
|
|
|
|
|
|
Ventilators on freeboard and superstructure decks (positions 1 and 2) (Regulation
19)
Deck on
which fitted
|
Number
fitted
|
Coaming
|
Type (State patent name if any)
|
Closing
appliances
|
Dimensions
|
height
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Air pipes on freeboard and superstructure decks (Regulation 20)
Deck on
which fitted
|
Number
fitted
|
Coaming
|
height
|
Type (State patent name if any)
|
Dimensions
|
Closing
appliances
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cargo port and other similar openings (Regulation 21)
Position of
port
|
Dimensions of
opening
|
Distance of lower edge
from freeboard deck
|
Securing
devices
|
Remarks
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Scuppers, inlets and discharges (Regulation 22)
State if
scupper or discharge
|
Number
|
Pipe
|
From
|
Vertical distance above top of keel
|
Number,
type and material of discharge valves
|
Position
of controls
|
Diameter
|
Thickness
|
Material
|
Discharge
|
Uppermost
value
|
Outlet in hull
|
Inboard
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
S -
Scupper
|
MS -
Mild steel
|
SD -
Screw-down
|
D - Discharge
|
CS -
Cast steel
|
ANR - Automatic
non-return
|
|
|
|
|
GM - Gun
metal
|
SD ANR - Screw-down
automatic non-return
|
|
|
|
|
Any other approved material to
be designated
|
Sidescuttles (Regulation 23)
Position
|
Number
fitted
|
Clear
glass size
|
Fixed or
opening
|
Material
|
Type of
glass and thickness
|
Standards
used and Type No.
|
Frame
|
Deadlight
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Indicate the vertical distance between the freeboard deck and the lower sill of the
sidescuttle positioned at the greatest vertical distance below the freeboard deck.
Freeing ports (Regulation 24)
|
Length of
bulwark
|
Height of
bulwark
|
Number and size of
freeing ports each side
|
Total area each
side
|
Required area each
side
|
Freeboard deck after well
|
|
|
|
|
|
Forward well
|
|
|
|
|
|
Superstructure deck
|
|
|
|
|
|
|
State fore and aft position of each freeing port in
relation to superstructure end bulkheads
|
After well
|
|
|
|
|
|
Forward well
|
|
|
|
|
|
|
Particulars of shutters, bars or rails fitted
to freeing ports
|
|
|
|
|
|
|
height of lower edge of freeing port above
deck
|
|
Protection of the crew (Regulations 25 and 26)
|
State particulars of bulwarks or guard
rails on freeboard and superstructure decks:
|
|
|
|
State details of lifelines, walkways,
gangways or underdeck passageways where required to be fitted:
|
|
Timber deck cargo fittings (Regulation 44)
|
State
particulars of uprights, sockets, lashings, guard rails and
lifelines:
|
|
|
|
|
|
The
conditions of assignment shown on this form are a record of the arrangements
and fittings provided on the ship and are in accordance with the
requirements of the relevant regulations of the International Convention on
Load Lines, 1966.
|
|
|
|
....................................................................
|
|
(Surveyor's signature)
|
|
....................................................................
|
|
(Date)
|
