Paragraph 3 - Ship model

  3.1 The material of which the model is made is not important in itself, provided that the model, both in the intact and damaged condition, is sufficiently rigid to ensure that its hydrostatic properties are the same as those of the actual ship and also that the flexural response of the hull in waves is negligible.

It is also important to ensure that the damaged compartments are modelled as accurately as practicably possible to ensure that the correct volume of floodwater is represented.

Since ingress of water (even small amounts) into the intact parts of the model will affect its behaviour, measures must be taken so that this ingress does not occur.

In model tests involving worst SOLAS damages near the ship ends, it was observed that progressive flooding was not possible because of the tendency of the water on deck to accumulate near the damage opening and hence flow out. As such models were able to survive very high sea states, while they capsized in lesser sea states with less onerous SOLAS damages, away from the ends, the limit ±35% was introduced to prevent this.

Extensive research carried out for the purpose of developing appropriate criteria for new vessels has clearly shown that in addition to the GM and freeboard being important parameters in the survivability of passenger ships, the area under the residual stability curve is also another major factor. Consequently in choosing the worst SOLAS damage for compliance with the requirement of paragraph 3.5.1 the worst damage is to be taken as that which gives the least area under the residual stability curve.

  3.2 Model particulars

  • .1 It has been found during tests that the vertical extent of the model can affect the results when tested dynamically. It is therefore required that the ship be modelled to at least three superstructure standard heights above the bulkhead (freeboard) deck so that the large waves of the wave train do not break over the model.

  • .2 The model in way of the assumed damages should be as thin as practically possible to ensure that the amount of floodwater and its centre of gravity are adequately represented. The hull thickness should not exceed 4 mm. It is recognised that it may not be possible for the model hull and the elements of primary and secondary subdivision in way of the damage to be constructed with sufficient detail and due to these constructional limitations it may not be possible to calculate accurately the assumed permeability of the space.

  • .3 It is important that not only the draughts in the intact condition are verified but also that the draughts of the damaged model are accurately measured for correlation with those derived from the damaged stability calculation. For practical reasons a tolerance of +2 mm in any draught is accepted.

  • .4 After measuring the damaged draughts it may be found necessary to make adjustments to the permeability of the damaged compartment by either introducing intact volumes or by adding weights. However, it is also important to ensure that the centre of gravity of the floodwater is accurately represented. In this case any adjustments made must err on the side of safety.

    If the model is required to be fitted with barriers on deck and their height is less than the bulkhead height indicated below, the model should be fitted with CCTV so that any "splashing over" and any accumulation of water on the undamaged area of the deck can be monitored. In this case a video recording of the event should form part of the tests records.

    The height of transverse or longitudinal bulkheads which are taken into account as effective to confine the assumed accumulated sea water in the compartment concerned in the damaged ro-ro deck should be at least 4 m in height unless the height of water is less than 0.5 m. In such cases the height of the bulkhead may be calculated in accordance with the following:

    Bh = 8hw

    Bh is the bulkhead height; and

    hw is the height of water.

    In any event, the minimum height of the bulkhead should be not less than 2.2 m. However, in the case of a ship with hanging car decks, the minimum height of the bulkhead should be not less than the height to the underside of the hanging car deck when in its lowered position.

  • .5 In order to ensure that the model motion characteristics represent those of the actual ship it is important that the model is inclined in the intact condition so that the intact GM is verified. The mass distribution should be measured in air. The transverse radius of gyration of the actual ship should be in the range 0.35B to 0.4B and the longitudinal radius of gyration should be in the range 0.2L to 0.25L.

    • Note: While inclining and rolling the model in the damage condition may be accepted as a check for the purpose of verifying the residual stability curve, such tests should not be accepted in lieu of the intact tests.

  • .6 It is assumed that the ventilators of the damaged compartment of the actual ship are adequate for unhindered flooding and movement of the floodwater. However in trying to scale down the ventilating arrangements of the actual ship undesirable scale effects may be introduced. In order to ensure that these do not occur it is recommended to construct the ventilating arrangements to a larger scale than that of the model, ensuring that this does not affect the flow of water on the car deck.

  • .7 It is deemed appropriate to consider a damage shape representative of a cross section of the striking ship in the bow region. The 15° angle is based on a study of the cross section at a distance of B/5 from the bow for a representative selection of vessels of different types and sizes.

    The isosceles triangular profile of the prismatic damage shape is that corresponding to the load waterline.

    Additionally, in cases where side casings of width less than B/5 are fitted and in order to avoid any possible scale effects, the damage length in way of the side casings should not be less than 25 mm.

  3.3 In the original model test method of resolution 14 of the 1995 SOLAS Conference the effect of heeling induced by the maximum moment deriving from any of passenger crowding, launching of survival craft, wind and turning was not considered even though this effect was part of SOLAS. Results from an investigation have shown however that it would be prudent to take these effects into account and to retain the minimum of 1° heel towards the damage for practical purposes. It is to be noted that heeling due to turning was considered not to be relevant.

  3.4 In cases where there is a margin in GM in the actual loading conditions compared to the GM limiting curve (derived from SOLAS 90), the Administration may accept that this margin is taken advantage of in the model test. In such cases the GM limiting curve should be adjusted. This adjustment can be done as follows:

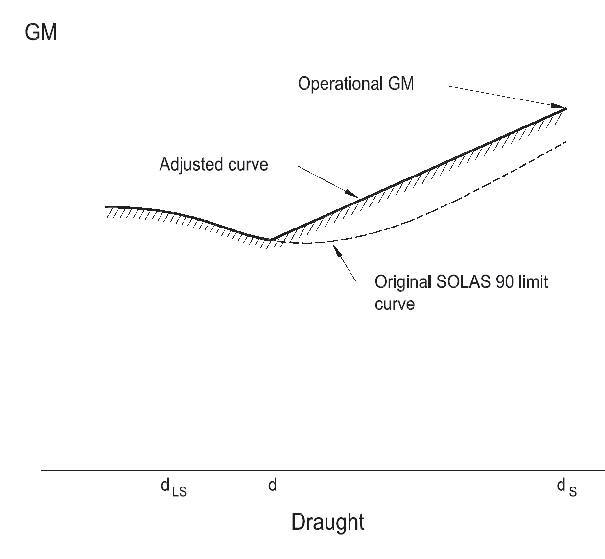

Figure 1 GM limiting curve adjustment

 d = dS — 0.6 ( dS - dLS )

 where: dS is the subdivision draught; and

 dLS is the lightship draught.

 The adjusted curve is a straight line between the GM used in the model test at the subdivision draught and the intersection of the original SOLAS 90 curve and draught d.
