Appendix - Equipment Number

 The equipment number (EN) should be calculated as follows:

where:
Δ = moulded displacement, in tonnes, to the Summer Load Waterline
B = moulded breadth, in metres
h = effective height, in metres, from the Summer Load Waterline to the top of the uppermost house; for the lowest tier "h" should be measured at centreline from the upper deck or from a notional deck line where there is local discontinuity in the upper deck
where:
a = distance, in metres, from the Summer Load Waterline amidships to the upper deck
hi = height, in metres, on the centreline of each tier of houses having a breadth greater than B/4
A = area, in square metres, in profile view, of the hull, superstructures and houses above the Summer Load Waterline which are within the equipment length of the ship and also have a breadth greater than B/4

Note 1 When calculating h, sheer and trim should be ignored, i.e. h is the sum of freeboard amidships plus the height (at centreline) of each tier of houses having a breadth greater than B/4.

Note 2 If a house having a breadth greater than B/4 is above a house with a breadth of B/4 or less, then the wide house should be included but the narrow house ignored.

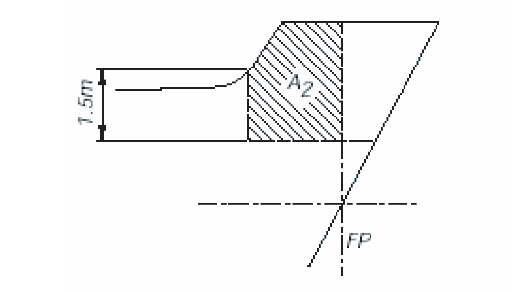

Note 3 Screens or bulwarks 1.5 m or more in height should be regarded as parts of houses when determining h and A. The height of the hatch coamings and that of any deck cargo, such as containers, may be disregarded when determining h and A. With regard to determining A, when a bulwark is more than 1.5 m high, the area shown below as A2 should be included in A.

Note 4 The equipment length of the ships is the length between perpendiculars but should not be less than 96% nor greater than 97% of the extreme length on the Summer Waterline (measured from the forward end of the waterline).
