This document has been consolidated into MSC/Circ.1120

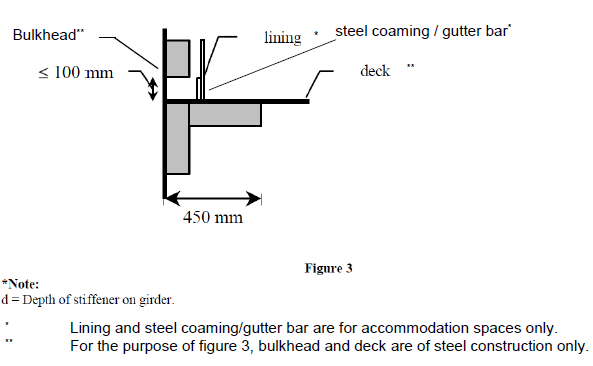

Appendix, figure 3
Figure 3 in the appendix of the Unified interpretations for typical
arrangements for prevention of heat transmission at intersections and terminal points of
insulation of decks and/or bulkheads, is amended as follows.
