3.2.1 The angle of heel due to steady wind when
the heeling lever HL1, obtained as in 1.3, is applied to
the intact stability curve should not exceed 16°.
3.2.2 The angle of heel due to steady wind when
the heeling lever HL3, obtained as in 2.2, is applied to
the residual stability curve after damage, should not exceed 20°.

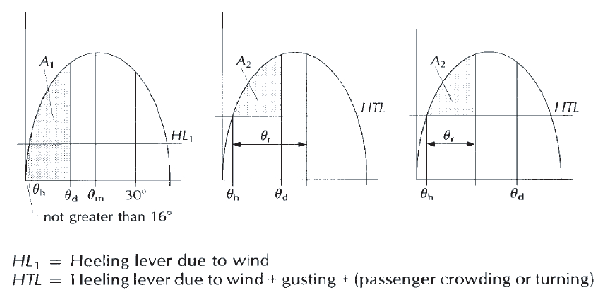

Figure 1 Intact stability
Figure 2 Damage stabiltiy
HL1
|
= |
Heeling
lever due to wind |
HTL |
= |
Heeling lever
due to wind + gusting + (passenger crowding or turning) |
HL3
|
= |
Heeling
lever due to wind |
HL4
|
= |
Heeling
lever due to wind + passenger crowding |
θm
|
= |
Angle
of maximum GZ |
θd
|
= |
Angle
of downflooding |
θr
|
= |
Angle
of roll |
θe
|
= |
Angle
of equilibrium, assuming no wind, passenger crowding or turning effects |
θh
|
= |
Angle
of heel due to heeling lever HL1, HTL, HL3 or
HL4
|
- A1 ≥ Area required by 1.1
- A2 ≥ 0.028 m.rad
