7.1 Test set-up

 Using the test set-up as shown in figure 1 below (see also 3.4 of appendix 3 of this Code) and the procedure below, the efficiency of converters shall be tested by means of an ozonator.

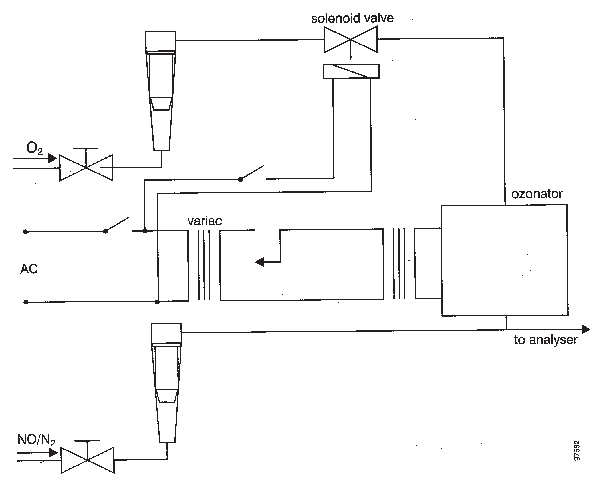

Figure 1 Schematic of NO2 converter efficiency device

Parent topic: 7 Efficiency test of the NOx converter
