3.1 General

3.1.1 These Rules, in general, apply only to window geometries shown by Figure 2.3.1 Standard Window Type and Geometry – 1 and Figure 2.3.2 Standard Window Type and Geometry– 2.

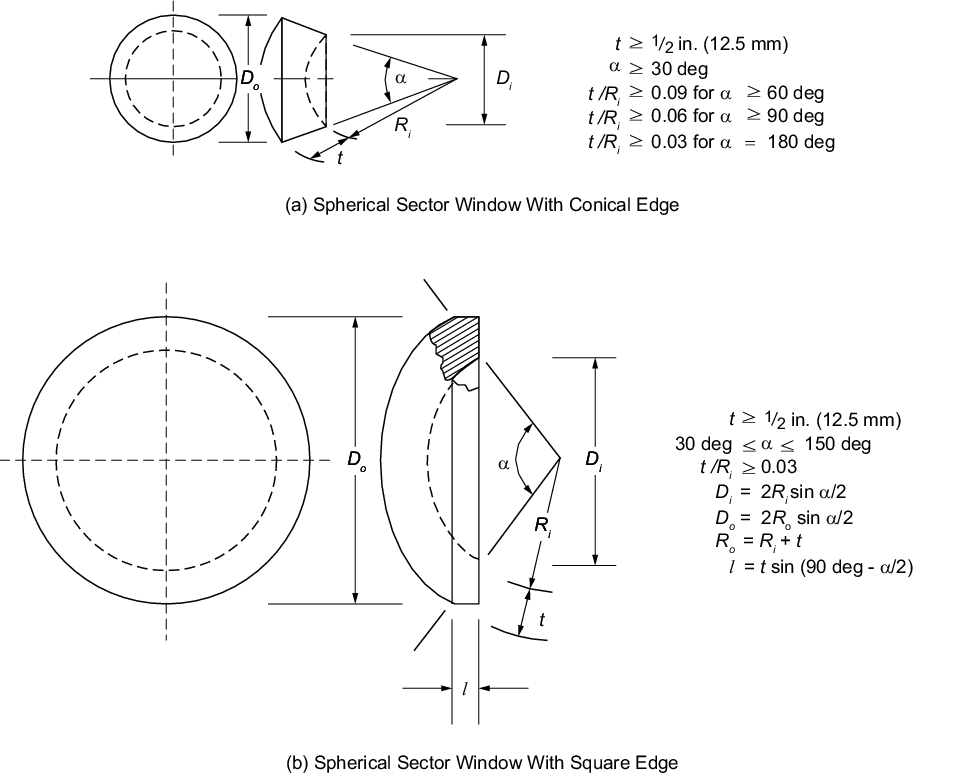

Figure 2.3.1 Standard Window Type and Geometry – 1

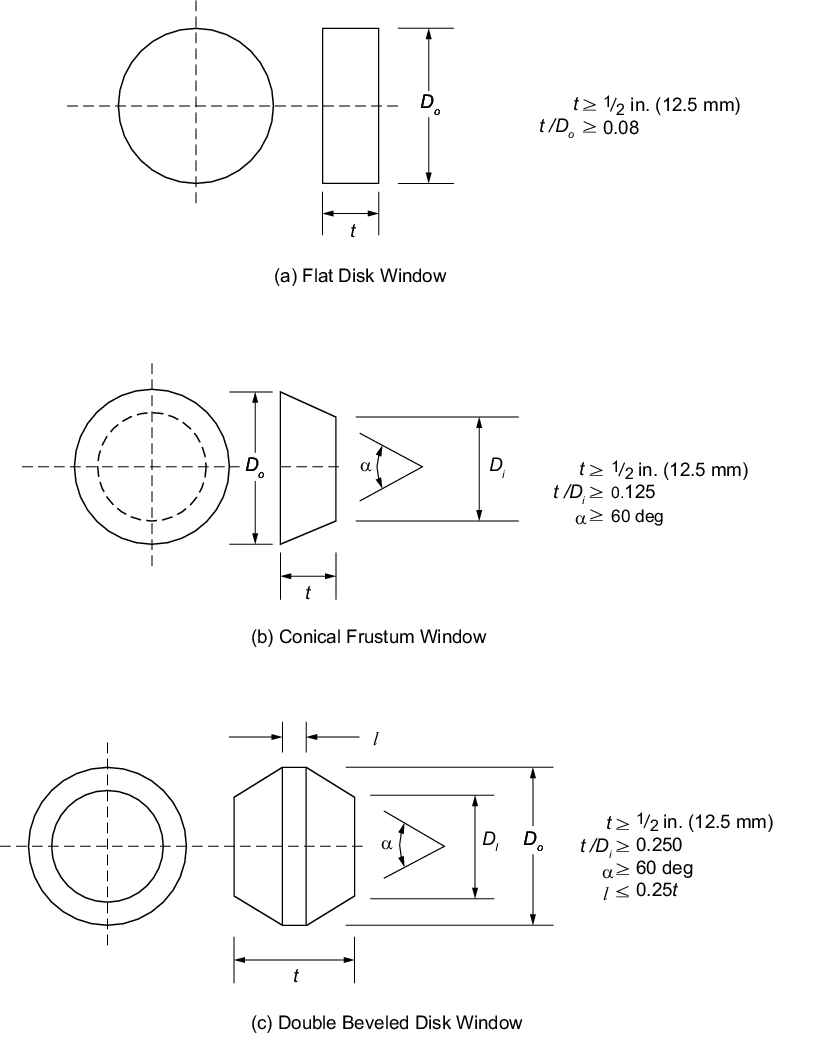

Figure 2.3.2 Standard Window Type and Geometry– 2

3.2 Thickness

3.2.1 The thickness of the window is a function of window geometry, maximum operating pressure, and operating temperature at the maximum operating pressure. Windows may be designed using ASME PVHO-1 or equivalent National or International Standard in agreement with LR.
