Annex 8 - Recommended Procedures for Thickness Measurements
Clasification Society 2024 - Version 9.40
Statutory Documents - IMO Publications and Documents - Resolutions - Assembly - IMO Resolution A.744(18) – Guidelines on the Enhanced Programme of Inspections During Surveys for Bulk Carriers and Oil Tankers – (Adopted on 4 November 1993) - Annex A - Guidelines on the Enhanced Programme of Inspections During Surveys for Bulk Carriers - Part A - Guidelines on the Enhanced Programme of Inspections During Survey of Bulk Carriers Having Single-side Skin Construction - Annex 8 - Recommended Procedures for Thickness Measurements

Annex 8 - Recommended Procedures for Thickness Measurements

Parent topic: Part A - Guidelines on the Enhanced Programme of Inspections During Survey of Bulk Carriers Having Single-side Skin Construction

General

  1 These procedures should be used for recording thickness measurements as required by annex 2.

  2 Reporting forms TM1-BC, TM2-BC, TM3-BC, TM4-BC, TM5-BC, TM6-BC and TM7-BC, in appendix 2, should be used for recording thickness measurements and the maximum allowable diminution should be stated.

  3 appendix 3 contains guidance diagrams and notes relating to the reporting forms and the requirements for thickness measurement.

  4 The reporting forms should, where appropriate, be supplemented by data presented on structural sketches.

Appendix 1 - General Particulars

General Particulars

Ships Name
IMO number:
Class/Administration identity Number:
Port of Registry:
Gross Tonnage:
Deadweight:
Date of build:
Classification society:

Name of company performing thickness measurement:
Thickness measurement company certified by:
Certificate number:
Certificate valid from:...................................................to............................................................
Place of measurement:
First date of measurement:
Last date of measurement:
renewal survey/intermediate survey due*:
Details of measurement equipment:
Qualification of Operator:
Report Number: consisting of pages
Name of operator:............................................ Name of surveyor............................................
Signature of operator:...................................... Signature of surveyor......................................
Company Official stamp:.................................. Administration: ...............................................
  Official stamp:


Appendix 2 - Reports on Thickness Measurement

(TM1-BC)

Table TM1-BC Report on thickness measurement or all deck plating, all bottom shell platingor side shell plating

Ship's name..........................IMO Number..........................Class identity NO..........................Report No....................
Strake Position
Plate Position No
or
Letter 		Org
Thk.
mm 		Forward Reading Aft Reading Diminution S
Gauged Diminution P Gauged Diminution P Diminution S Mean Diminution
P S mm % mm % P S mm % mm % P S
12th forward
11th
10th
9th
8th
7th
6th
5th
4th
3rd
2nd
1st
Amidships
1st aft
2nd
3rd
4th
5th
6th
7th
8th
9th
10th
11th
12th
Operators signature................ Surveyors Signature............................           Notes. See Reverse

Notes to (TM1-BC)

  1 This report should be used for recording the thickness measurement of:

  • .1 All strength deck plating within the cargo length area.

  • .2 Keel, bottom shell plating and bilge plating within the cargo length area.

  • .3 Side shell plating that is all wind and water strakes within the cargo length area.

  • .4 Side shell plating that is selected wind and water strakes outside the cargo length area.

  2 The strake position should be clearly indicated as follows:

  • 2.1 For strength deck indicate the number of the strake of plating inboard from the stringer plate.

  • 2.2 For bottom plating indicate the number of strake plating outboard from the keel plate.

  • 2.3 For side shell plating give number of the strake of plating below sheerstrake and letter as shown on shell expansion.

  3 On the deck plating strake outside line of openings should be recorded.

  4 Measurements should be taken at the forward and aft areas of all plates and the single measurements recorded should represent the average of multiple measurements.

(TM2-BC(1))

Table TM2-BC(1) Report on Thickness Measurement of Shell and Deck Plating (one, two or three transverse sections)

Ship's name.......................... IMO Number.......................... Class identity NO.......................... Report No....................
STRENGTH DECK AND SHEERSTRAKE PLATING
  First Transverse Section at Frame Number   Second Transverse Section at Frame Number Third Transverse Section at Frame Number
Strake Position No of Letter Org Thk mm Gauged Diminution P Diminution S % mm Gauged Diminution P Diminution S P S Gauged Diminution P Diminution S
P S mm % No of Letter Org Thk mm mm % mm % No of Letter Org Thk mm P S mm % mm %
Stringer Plate
1st stroke inboard
2nd
3rd
4th
5th
6th
7th
8th
9th
10th
11th
12th
13th
14th
centre stroke
ahear stroke
Topside total

Operators signature................ Surveyors Signature............................               Notes. See Reverse

Notes to (TM2-BC(1))

  1 This report should be used for recording the thickness measurement of strength deck plating and sheerstrake plating transverse sections:

Two or three sections within the cargo length area, comprising of the structural items (1), (2) and (3) as shown on the diagram of typical transverse section indicating longitudinal and transverse members, in appendix 3.

  2 Only the deck plating outside the line of openings should be recorded.

  3 The topside area comprises deck plating, stringer plate and sheerstrake (including rounded gunwales).

  4 The exact frame station of measurement should be stated.

  5 The single measurements recorded should represent the average of multiple measurements.

(TM2-BC(2))

Table TM2-BC(2) Report on thickness measurement or all deck plating, all bottom shell platingor side shell plating (one, two or three transverse sections)

Ship's name.......................... IMO Number.......................... Class identity NO.......................... Report No....................
SHELL PLATING
  First Transverse Section at Frame Number   Second Transverse Section at Frame Number Third Transverse Section at Frame Number
Strake Position No of Letter Org Thk mm Gauged Diminution P Diminution S % mm Gauged Diminution P Diminution S P S Gauged Diminution P Diminution S
P S mm % No of Letter Org Thk mm mm % mm % No of Letter Org Thk mm P S mm % mm %
1st below sheet stroke
2nd
3rd
4th
5th
6th
7th
8th
9th
10th
11th
12th
13th
14th
15th
16th
17th
18th
19th
20th
keel stroke
Bottom Total
Operators signature................ Surveyors Signature............................               Notes. See Reverse

Notes to (TM2-BC(2))

  1 This report should be used for recording the thickness measurement of longitudinal members at transverse sections:

Two or three sections within the cargo length area, comprising of the structural items (8) to (2) as shown on the diagram of typical transverse section indicating longitudinal and transverse members, in appendix 3.

  2 The exact frame station of measurements should be stated.

  3 The single measurements recorded should represent the average of multiple measurements

(TM3-BC)

Table TM3-BC Report on thickness measurement of longitudinal members (one, two or threetransverse sections)

Ship's name.......................... IMO Number.......................... Class identity NO.......................... Report No....................
  First Transverse Section at Frame Number ........   Second Transverse Section at Frame Number ........ Third Transverse Section at Frame Number ........
STRUCTURAL MEMBER Item
No. 		Org
Thk.
mm 		Gauged Diminution P Diminution S % mm Gauged Diminution P Diminution S P S Gauged Diminution P Diminution S
P S mm % No of Letter Org
Thk.
mm 		mm % mm % No of Letter Org Thk mm P S mm % mm %






















Operators signature................ Surveyors Signature............................               Notes. See Reverse

Notes to (TM3-BC)

  1 This report should be used for recording the thickness measurement of transverse structural members, comprising of the appropriate structural items (23) to (25) as shown on the diagram of typical transverse section indicating longitudinal and transverse members, in appendix 3.

  2 Guidance for areas of measurement is indicated in Tables 1 to 3 to appendix 3.

  3 The single measurements recorded should represent the average of multiple measurements.

(TM4-BC)

Table TM4-BC Report on thickness measurement of transverse structural members in the cargoand ballast tanks within the cargo tank length

Ship's name.......................... IMO Number.......................... Class identity NO.......................... Report No....................
TANK DESCRIPTION :
LOCATION OF STRUCTURE:
STRUCTURAL MEMBER ITEM Original Thickness mm Gauged Diminution P Diminution S
P S mm % mm %




















Operators signature ...................... Surveyors signature .................................... Notes - see following page

Notes to (TM4-BC)

  1 This report should be used for recording the thickness measurements of shell plating transverse sections:

Two or three sections within the cargo length area comprising of the structural items (4), (5), (6) and (7) as shown on the diagram of typical transverse section indicating longitudinal and transverse members, in appendix 3.

  2 The bottom area comprises keel, bottom and bilge plating.

  3 The exact frame station of measurement should be stated.

  4 The single measurements recorded should represent the average of multiple measurements.

(TM5-BC)

Table TM5-BC Report on thickness measurement of cargo hold transverse bulkheads

Ship's name.......................... IMO Number.......................... Class identity No......................... Report No..................
TANK/HOLD DESCRIPTION
LOCATION OF STRUCTURE: FRAME No :
STRUCTURAL COMPONENT (PLATING/STIFFENER) Original Thickness mm Gauged Diminution
P 		Diminution
S
PORT STARBOARD mm % mm %




















Operators signature ...................... Surveyors signature ........................... Notes - see following page

Notes to (TM5-BC)

  1 This report form should be used for recording the thickness measurement of cargo hold transverse bulkheads.

  2 Guidance for areas of measurement is indicated in Tables 1 to 3 of appendix 3.

  3 The single measurements recorded should represent the average of multiple measurements.

(TM6-BC)

Table TM6-BC Report on thickness measurement of Miscellaneous Structural members

Ship's name.......................... IMO Number.......................... Class identity No......................... Report No..................
TANK/HOLD DESCRIPTION : SKETCH
LOCATION OF STRUCTURE :
Description Orig.
Thk.
mm 		P S mm mm %




















Operators signature ...................... Surveyors signature ................... Notes - see following page

Notes to (TM6-BC)

  1 The report should be used for recording thickness measurement of miscellaneous structural members including the structural items (28), (29), (30) and (31) as shown on the diagram of typical transverse section indicating longitudinal and transverse members, in appendix 3.

  2 Guidance for areas of measurement is indicated in Tables 1 to 3 of appendix 3.

  3 The single measurements recorded should represent the average of multiple measurements.

(TM7-BC)

Table TM7-BC Report on thickness measurement of cargo hold transverse frames

Ship's name.......................... IMO Number.......................... Class identity NO.......................... Report No....................
CARGO HOLD No.

Orig.
Thk.
mm 		Gauged Diminution
P 		Diminution
S 		% Gauged Diminution
P 		Diminution
S 		P Gauged Diminution
P 		Diminution
S
P S mm mm % Orig.
Thk.
mm 		S mm % mm % Orig.
Thk.
mm 		P S mm % mm %



















Operators signature ................ Surveyors Signature ............................     Notes - see following page

Notes to (TM7-BC)

  1 This report should be used for recording the thickness measurement of:

  • cargo hold transverse frames; and
  • structural item number 34 as shown on the diagram of typical transverse section indicating longitudinal and transverse members, in appendix 3.

  2 Guidance for areas of measurement is indicated in Tables 1 to 3 of appendix 3.

  3 The single measurements recorded should represent the average of multiple measurements (see also diagram).

Figure 1

Appendix 3 - Guidance of Thickness Measurement

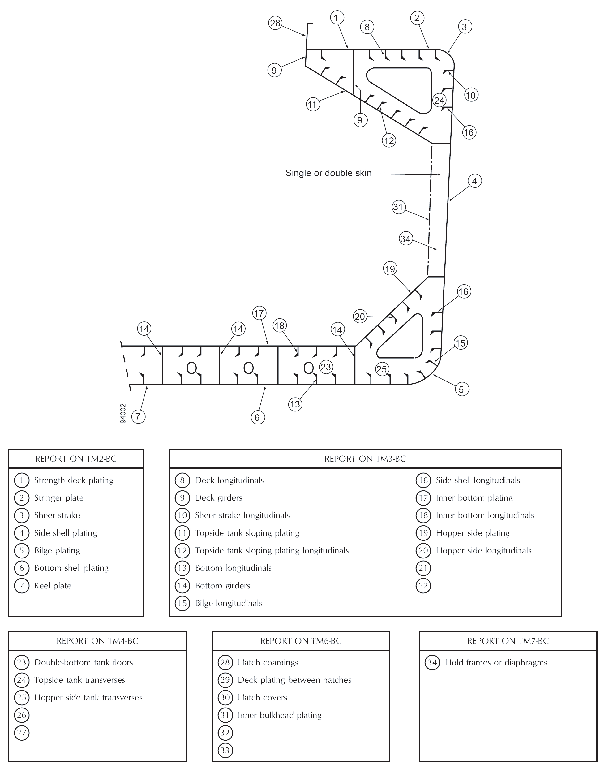

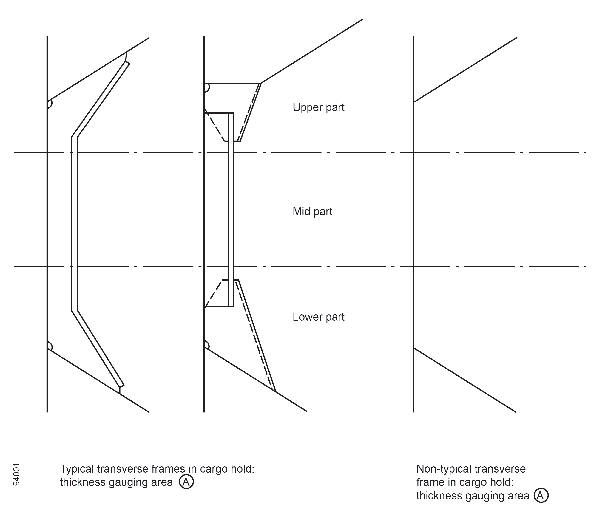

Figure A Guidance on Thickness Measurement

Figure B Transverse Section Outline

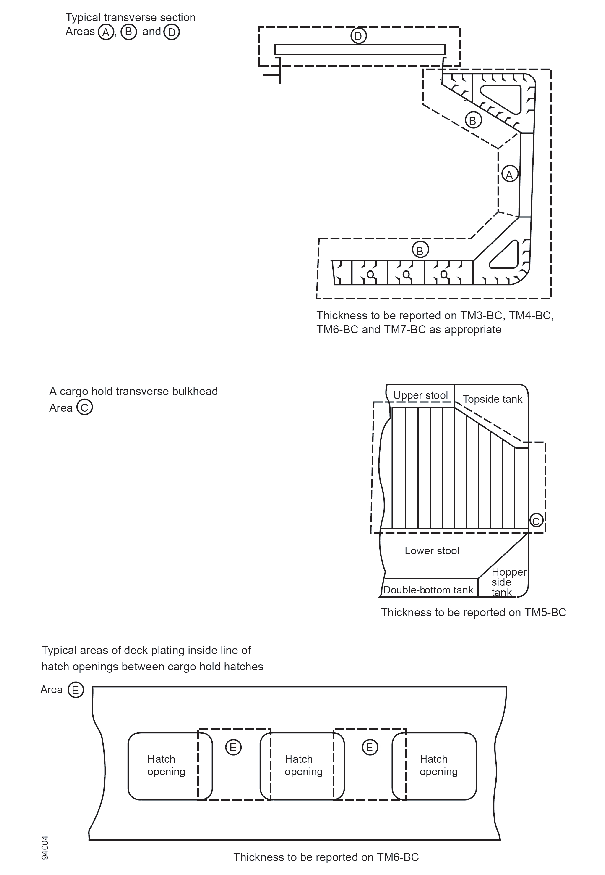

Table 1 Close-up Survey and Thickness Measurement Areas

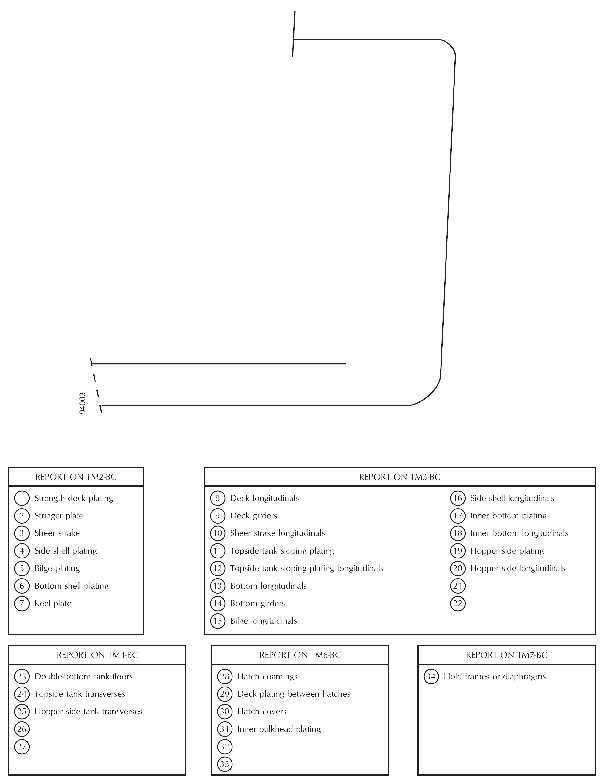

Appendix 4 - Thickness measurement and typical transverse section indicating longitudinal and transverse members

Figure A

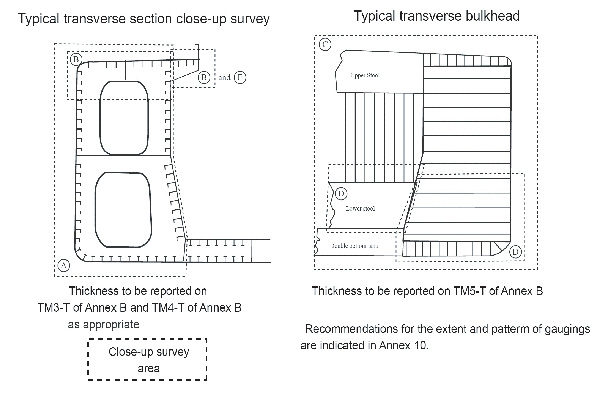

Appendix 5 - Thickness measurements and close-up surrey requirements

Figure A
