Section
9 Flat surfaces and flat tube plates
9.1 Stayed flat surfaces
9.1.1 Where
flat end plates are flanged for connection to the shell, the inside
radius of flanging is to be not less than 1,75 times the thickness
of the plate, with a minimum of 38 mm.
9.1.2 Where
combustion chamber or firebox plates are flanged for connection to
the wrapper plate, the inside radius of flanging is to be equal to
the thickness of the plate, with a minimum of 25 mm.
9.1.3 Where
unflanged flat plates are connected to the shell by welding, typical

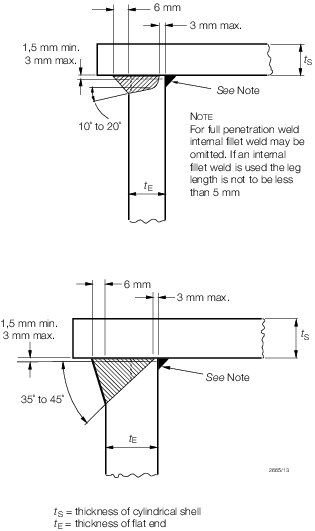

methods of attachment are shown in Figure 10.9.1 Typical attachement of unflanged flat end plates to shell. Similar forms of attachment may be used where unflanged
combustion chamber or firebox plates are connected to the wrapper
plate by welding.
Figure 10.9.1 Typical attachement of unflanged flat end plates to shell
9.1.4 Where
the flange curvature is a point of support, this is to be taken at
the commencement of curvature, or at a line distant 3,5 times the
thickness of the plate from the outside of the plate, whichever is
nearer to the flange.
9.1.5 Where
a flat plate is welded directly to a shell or wrapper plate, the point
of support is to be taken at the inside of the shell or wrapper plate.
9.1.6 The
thickness, t, of those portions of flat plates supported
by stays and around tube nests is to be determined by the following
formula:
|
|
= |
where t, p, c and σ are as defined in Pt 5, Ch 10, 1.2 Definition of symbols
|
|
d
|
= |
diameter
of the largest circle which can be drawn through at least three points
of support. At least one point of support must lie on one side of
any diameter of the circle |
|
C
|
= |
a
constant, dependent on the method of support as detailed in Pt 5, Ch 10, 9.1 Stayed flat surfaces 9.1.7. Where various forms of support
are used, C is to be the mean of the values for the respective
methods adopted.
|
9.1.7 The
value of C in the formula in Pt 5, Ch 10, 9.1 Stayed flat surfaces 9.1.6 is to be as follows:
-
Where plain bar
stays are strength welded into the plates as shown in Figure 10.9.2 Typical attachment of firebox, combustion chamber stays and bar stays
-
Where plain bar
stays pass through holes in the plates and are fitted on the outside

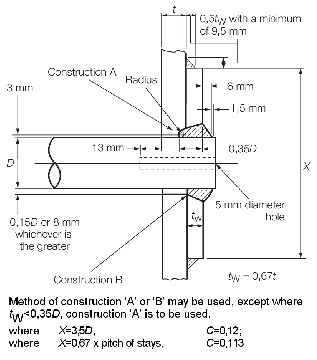

with washers as shown in Figure 10.9.3 Typical attachment of bar stays
|
C
|
= |
0,12
where the diameter of the washer is 3,5 times the diameter of the
stay |
|
C
|
= |
0,113
where the diameter of the washer is 0,67 times the pitch of the stays. |
-
Where the flat
plate is flanged for attachment to the shell, flue, furnace or wrapper
or, alternatively, is welded directly to shell, flue, furnace or wrapper, see
Pt 5, Ch 10, 9.1 Stayed flat surfaces 9.1.4 and Pt 5, Ch 10, 9.1 Stayed flat surfaces 9.1.5:
-
Where the support
is a gusset stay
-
Where the support

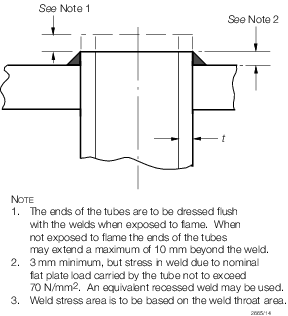

is a tube secured as shown in Figure 10.9.4 Detail of weld for tube
Figure 10.9.2 Typical attachment of firebox, combustion chamber stays and bar stays
Figure 10.9.3 Typical attachment of bar stays
Figure 10.9.4 Detail of weld for tube
9.1.9 In
the case of small boilers with a single tube nest of expanded tubes
which does not exceed an area of 0,65 m2, welded tubes
need not be fitted provided the tubes are beaded at the inlet end.
In this instance the support afforded by the expanded tubes is not
to be taken to extend beyond the line enclosing the outer surfaces
of the tubes except that, between the outside of the nest and the
attachment of the end plate to shell, there may be an unsupported
width equal to the flat plate margin, as given by the formula in Pt 5, Ch 10, 9.4 Flat plate margins 9.4.1. The required tube plate
thickness within such a tube nest is to be determined using the formula
in Pt 5, Ch 10, 9.1 Stayed flat surfaces 9.1.6, where:
|
d
|
= |
four
times the mean pitch, in mm, of the expanded tubes in the nest. |
9.1.10 The
thickness, t, of any tube plate in the tube area is to
be not less than that required for the surrounding plate determined
by Pt 5, Ch 10, 9.1 Stayed flat surfaces 9.1.6 and in no case less
than:
-
12,5 mm where
the diameter of the tube hole does not exceed 50 mm, or
-
14 mm where
the diameter of the tube hole is greater than 50 mm.
9.1.11 Alternative
methods of support will be specially considered.
9.1.12 The
spacing of tube holes is to be such that the minimum width, b,
in mm of any ligament between tube holes is not less than:
for expanded tubes:
for welded tubes:
where d = diameter of the hole drilled
in the plate, in mm.
9.1.13 Where
a flat plate has a manhole or sight hole and the opening is strengthened
by flanging, the total depth, H, of the flange, measured
from the outer surface of the plate, is to be not less than:
where
|
t
|
= |
thickness
of plate, in mm |
|
H
|
= |
depth
of flange, in mm |
|
W
|
= |
minor
axis of manhole or sight hole, in mm. |
9.1.14 Where
the flat top plates of combustion chambers are supported by welded-on
girders, the equation in Pt 5, Ch 10, 9.1 Stayed flat surfaces 9.1.6 is
to apply as follows:
-
In the case
of welded-on girders provided with waterways
|
d |
= |
|
- where
|
X
|
= |
width
of waterway in the girder plus the thickness of the girder, in mm |
|
Y
|
= |
pitch
of girders, in mm. |
-
In the case
of continuously welded-on girders
- where
|
D
|
= |
distance
between inside faces of girders, in mm. |
9.2 Combustion chamber tube plates under compression
9.2.1 The
thickness of combustion chamber tube plates under compression due
to the pressure on the top plate, based on a compressive stress not
exceeding 96 N/mm2 is to be determined by the following
formula:
|
|
= |
where t and p are as defined in Pt 5, Ch 10, 1.2 Definition of symbols
|
|
d
|
= |
internal
diameter of the plain tubes, in mm |
|
s
|
= |
pitch
of tubes, in mm, measured horizontally where tubes are chain pitched,
or diagonally where the tubes are staggered pitched and the diagonal
pitch is less than the horizontal pitch |
|
W
|
= |
internal
width of the combustion chamber, in mm, measured from tube plate to
back chamber plate. |
9.3 Girders for combustion chamber top plates
9.3.2 The
thickness of steel plate girders supporting the tops of combustion
chambers is to be determined by the following formula:
|
|
= |
where t and p are as defined in Pt 5, Ch 10, 1.2 Definition of symbols
|
|
d
|
= |
effective
depth of girder, in mm |
|
l
|
= |
length
of girder measured internally from tube plate to back chamber plate,
in mm |
|
s
|
= |
pitch
of the girders, in mm |
|
R
20
|
= |
specified minimum tensile strength of the girder plate, in N/mm2.
|
9.4 Flat plate margins
9.4.1 The
width of margin, b, of a flat plate which may be regarded
as being supported by the shell, furnaces or flues to which the flat
plate is attached is not to exceed that determined by the following
formula:
9.4.2 Where
an unflanged flat plate is welded directly to the shell, furnaces
or flues and it is not practicable to effect the full penetration
weld from both sides of the flat plate, the constant C used
in the formula in Pt 5, Ch 10, 9.4 Flat plate margins 9.4.1 is
to be:
9.4.3 In
the case of plates which are flanged, the margin is to be measured
from the commencement of curvature of flanging, or from a line 3,5
times the thickness of the plate measured from the outside of the
plate, whichever is nearer to the flange.
9.4.4 Where
the flat plate is not flanged for attachment to the shell, furnaces
or flues, the margin is to be measured from inside of the shell or
the outside of the furnaces or flues, whichever is applicable.
9.4.5 In
no case is the diameter D, in mm, of the circle forming
the boundary of the margin supported by the uptake of a vertical boiler
to be greater than determined by the following formula:
|
|
= |
where p is as defined in Pt 5, Ch 10, 1.2 Definition of symbols
|
|
d
|
= |
external
diameter of uptake, in mm |
|
d
i
|
= |
internal diameter of uptake, in mm |
|
A
|
= |
cross-sectional
area of the uptake tube material, |
|
