Section 2 Examples of fractures

2.1 General

2.1.1 The following Figure 13.2.1 Bottom structure fractures and buckling in way of a cut-out for the passage of a longitudinal through a transverse primary member give examples of fractures and suggested repairs or modifications.

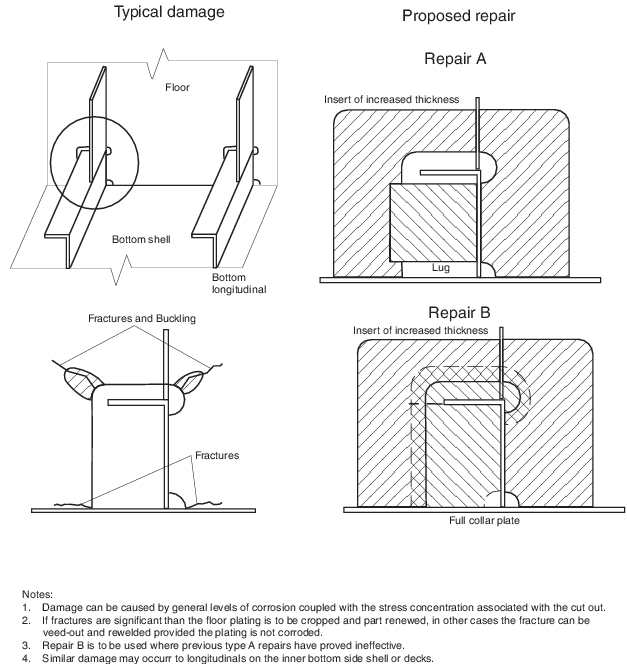

Figure 13.2.1 Bottom structure fractures and buckling in way of a cut-out for the passage of a longitudinal through a transverse primary member

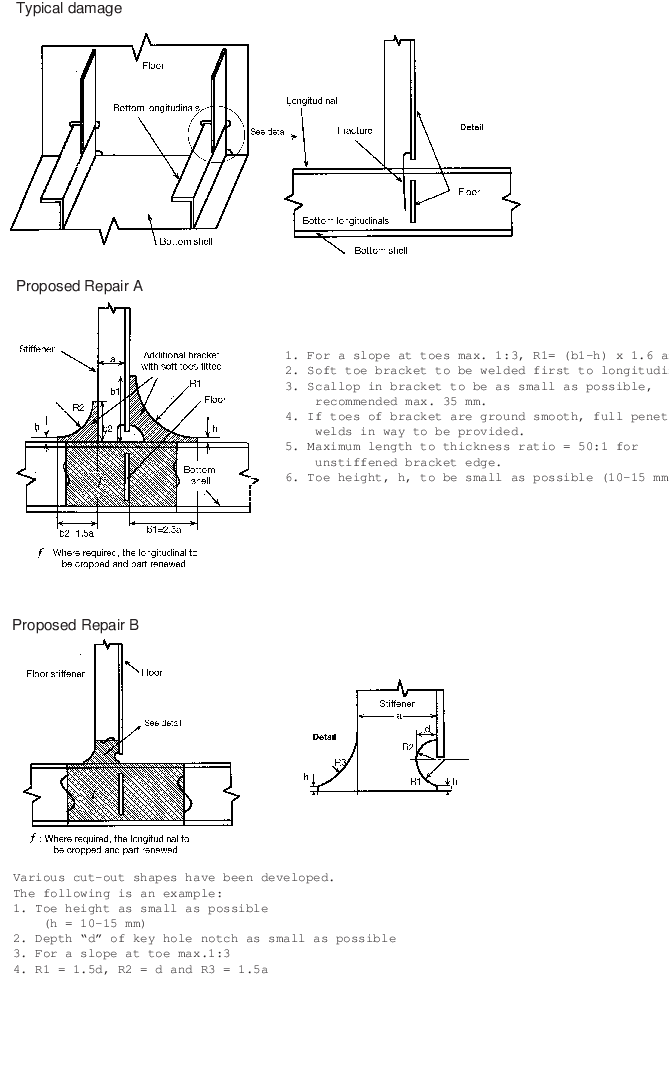

Figure 13.2.2 Bottom structure
Fractures at connection of bottom/inner bottom longitudinal to floor stiffener

Figure 13.2.3 Bottom structure

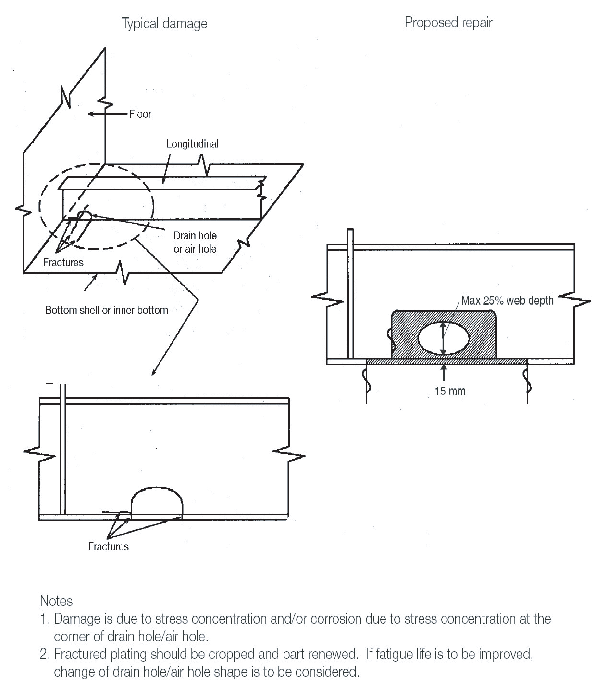

Fractures in bottom shell plating/inner bottom plating at the corner drain hole/air hole in longitudinal

Figure 13.2.4 Bottom structure
Fractures in bottom shell plating along side girder and/or bottom longitudinal

Figure 13.2.5 Bottom structure

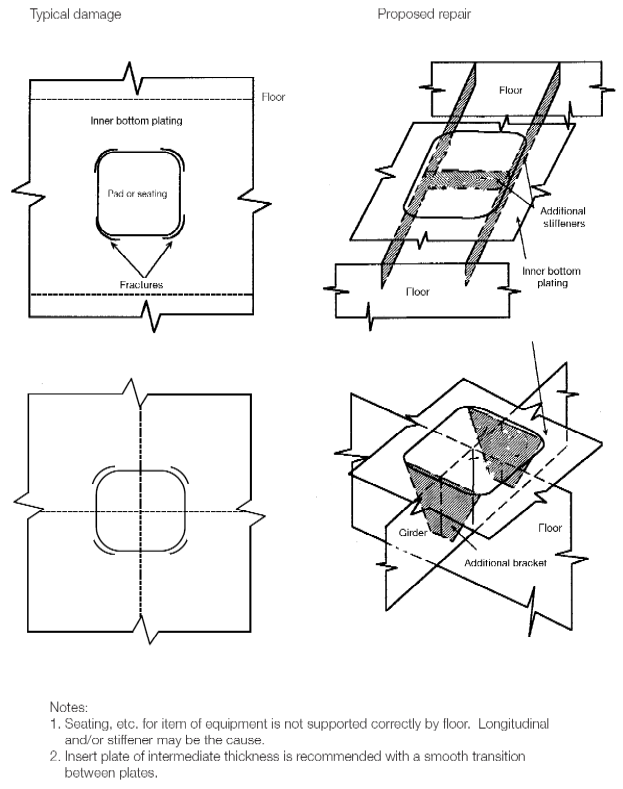

Fractures in inner bottom plating in way of seatings, etc.

Figure 13.2.6 Bottom structure

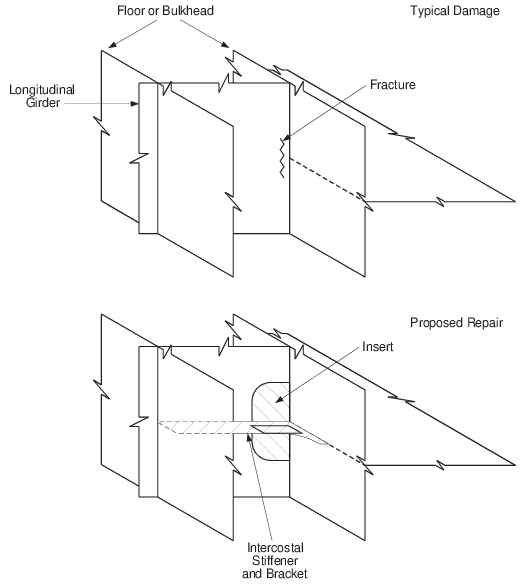

Fractures in unsupported longitudinals

Figure 13.2.7 Bottom structure

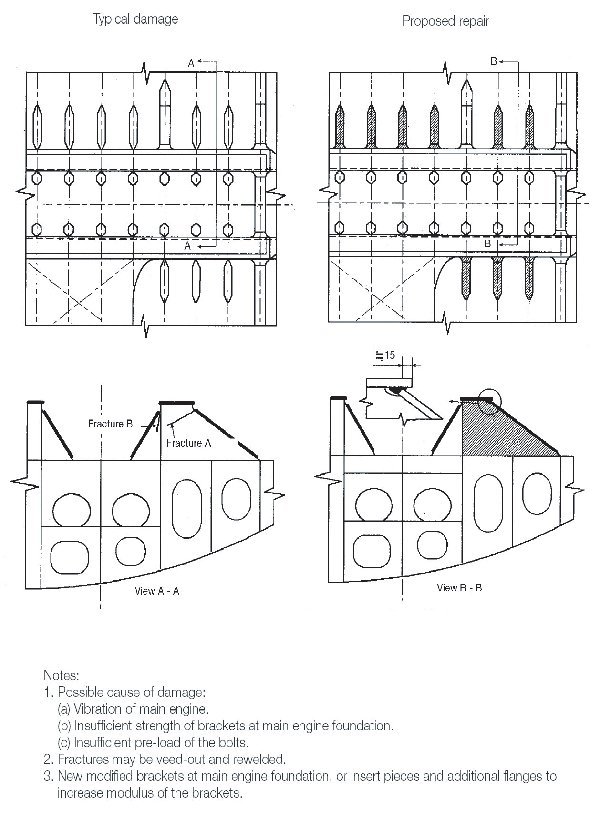

Fractures in brackets at main engine foundation

Figure 13.2.8 Bottom structure cruciform arrangement

Figure 13.2.9 Deck structure
Fracture welded seam between thick plate and thin plate in deck

Figure 13.2.10 Deck structure
Fracture at corner of opening

Figure 13.2.11 Deck structure
Fractures in continuous deck house sides or coaming extension bracket

Figure 13.2.12 Deck structure

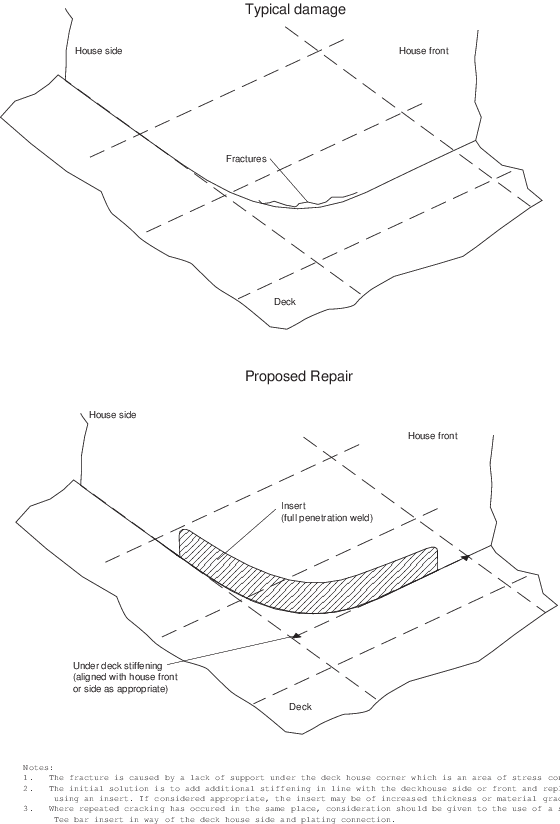

Fracture at bridge corner

Figure 13.2.13 Deck structure

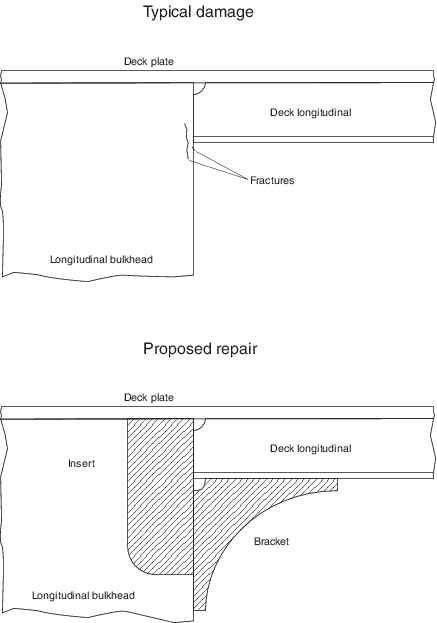

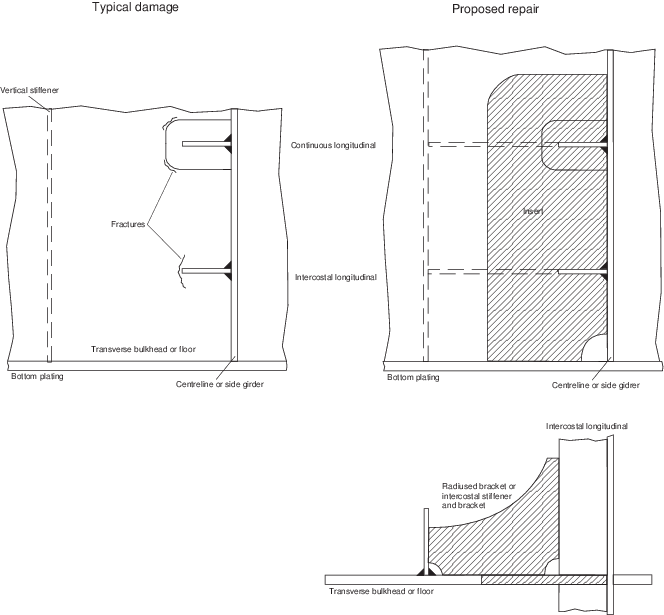

Fracture at longitudinal discontinuity

Figure 13.2.14 Deck proposed repair bulkhead structure

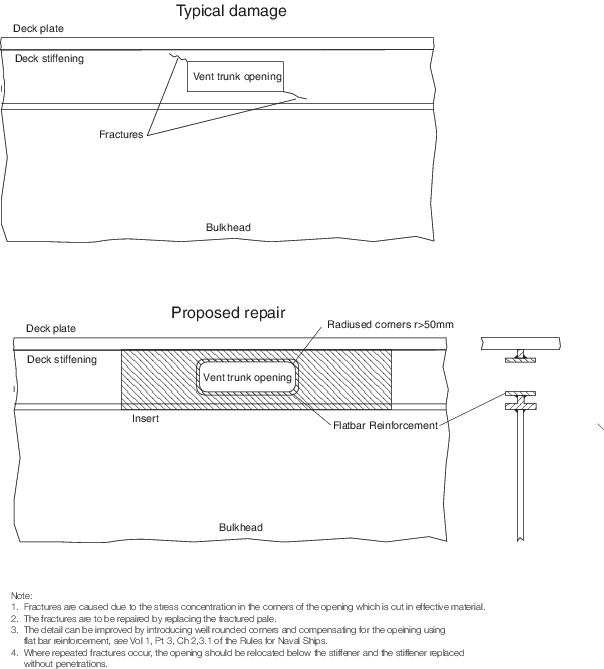

Fracture at openings or penetrations

Figure 13.2.15 Deck structure
Fracture at openings in longitudinal

Figure 13.2.16 Side structure

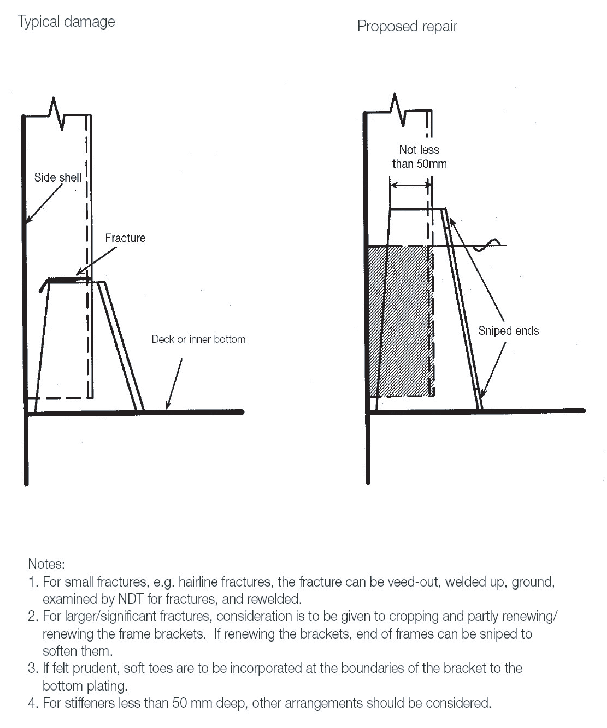

Fractures in side shell frame at lower bracket

Figure 13.2.17 Side structure

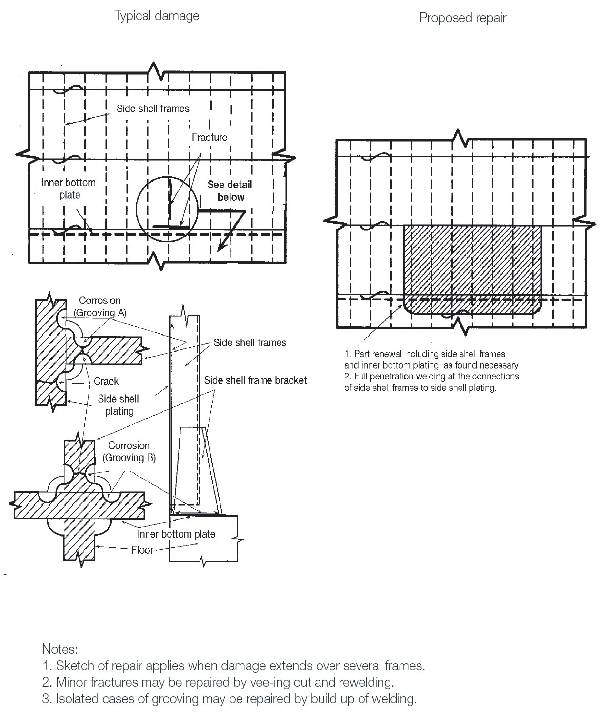

Fractures in side shell frame/lower bracket and side shell plating near tank top

Figure 13.2.18 Side structure

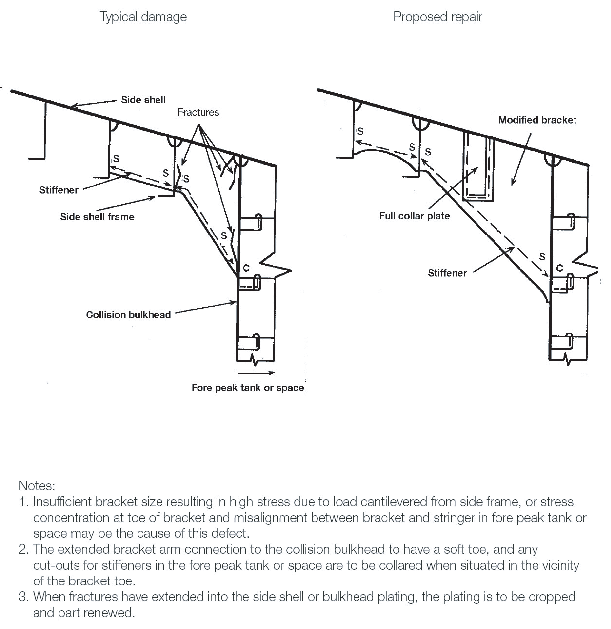

Fracture at the supporting brackets in way of collision bulkhead

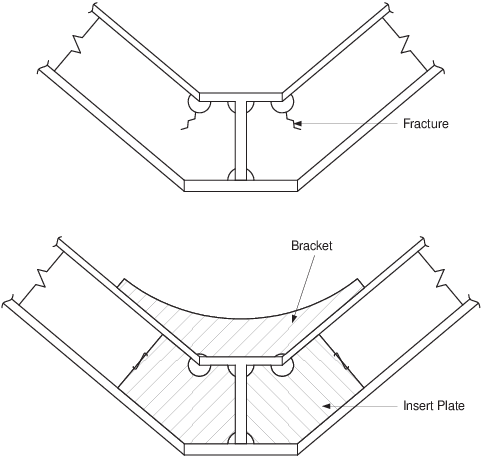

Figure 13.2.19 Fore end structure
Fractures in main frame to keel attachment

Figure 13.2.20 Side structure

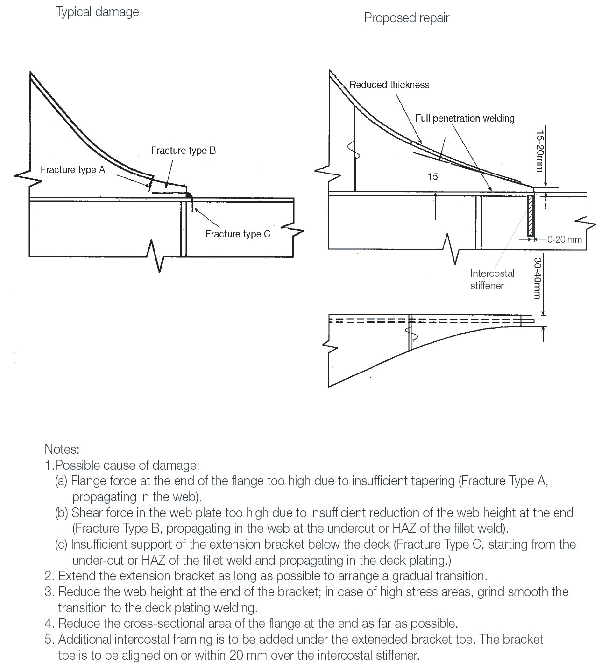

Fractures in way of continuation/extension brackets forward or aft of the machinery space bulkhead

Figure 13.2.21 Fore end structure

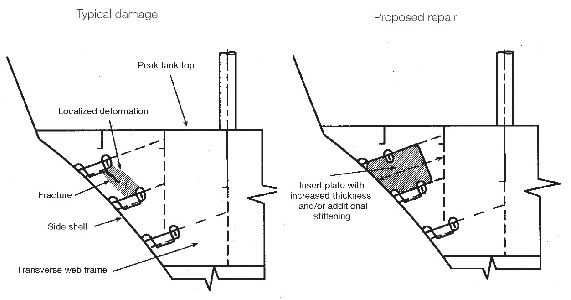

Fracture and deformation of bow transverse web in way of cut-outs for side longitudinals

Figure 13.2.22 Fore end structure

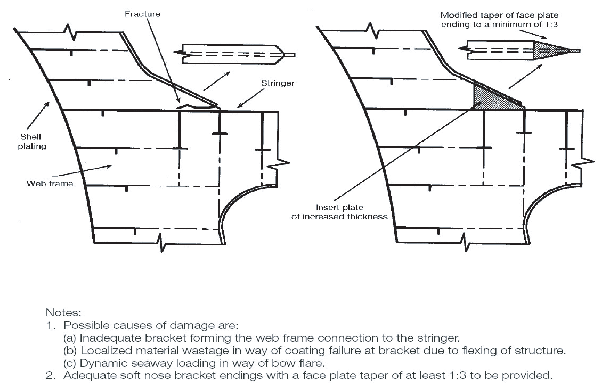

Fracture at toe of web frame bracket connection to stringer platform bracket

Figure 13.2.23 Aft end structure
Fractures in bulkheads due to vibration

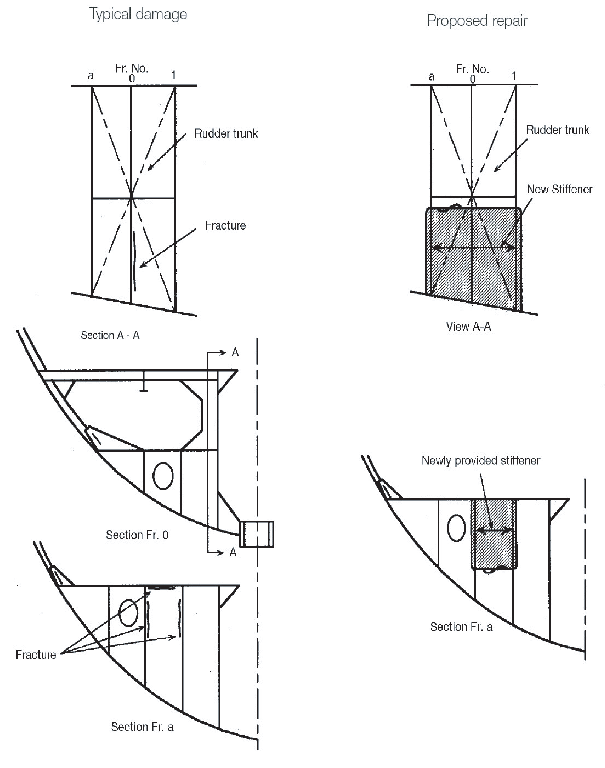

Figure 13.2.24 Aft end structure

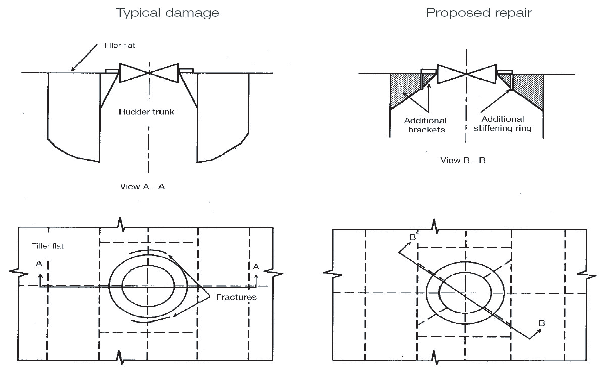

Fracture in flat where rudder carrier is installed in the tiller flat

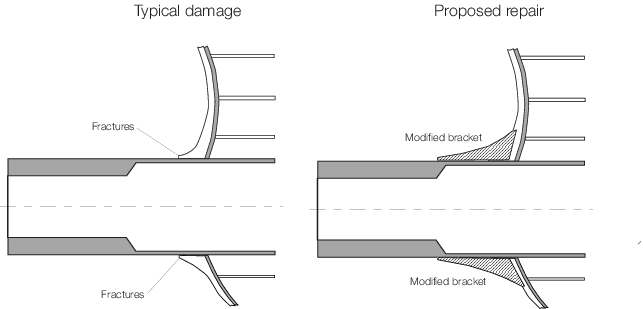

Figure 13.2.25 Fracture in stern tube at the connection to shell

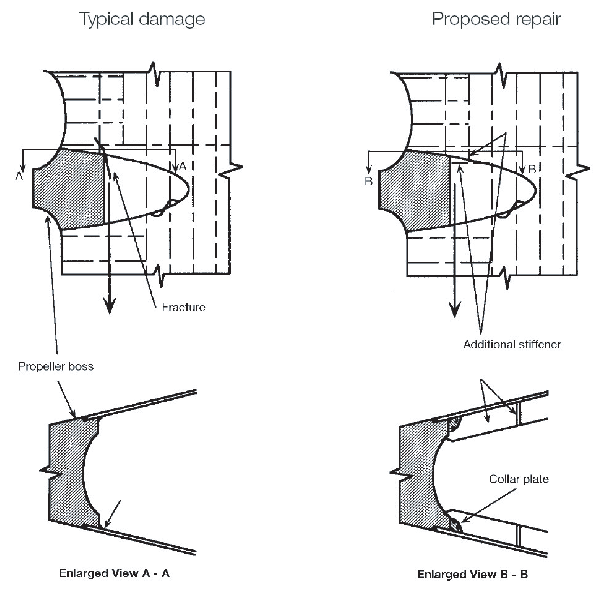

Figure 13.2.26 Fracture in side shell plating at the connection to propeller boss

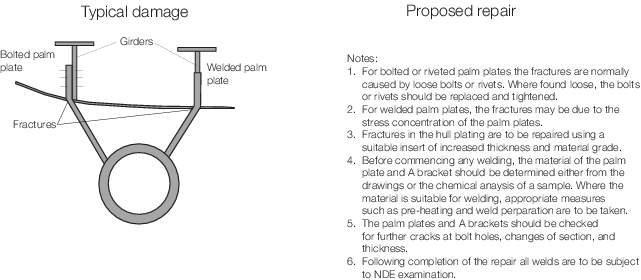

Figure 13.2.27 Fractures in plating adjacent to A brackets
