Section
5 Hull bending strength
5.1 Symbols
5.1.1 The
symbols used in this Section are defined as follows:
f
1
|
= |
ship service factor |
f
2
|
= |
wave bending moment factor |
min
|
= |
minimum
moment of inertia, of the hull midship section about the transverse
neutral axis, in m4
|
Z
min
|
= |
minimum hull midship section modulus about the transverse neutral
axis, in m3
|
σD, σB
|
= |
maximum hull vertical bending stress at strength deck and keel
respectively, in N/mm2
|
z
|
= |
vertical
distance from the hull transverse neutral axis to the position considered,
in metres |
5.2 Design vertical wave bending moments
5.2.1 The
appropriate hogging or sagging design hull vertical wave bending moment
at amidships is given by the following:
where
C
b
|
= |
is to be taken not less than 0,60 |
C
1
|
= |
is given in Table 4.5.1 Wave bending moment factor
|
C
2
|
= |
1, (also defined in Pt 3, Ch 4, 5.2 Design vertical wave bending moments 5.2.2 at
other positions along the length L)
|
f
1
|
= |
ship service factor. To be specially considered depending upon
the service restriction and in any event should be not less than 0,5.
For unrestricted sea-going service f
1 = 1,0
|
f
2
|
= |
−1,1 for sagging (negative) moment |
f
2
|
= |
for hogging (positive) moment
|
M
wo
|
= |
0,1C
1
C
2
L
2
B (C
b + 0,7) kN m
|
|
= |
(0,0102C
1
C
2
L
2
B (C
b + 0,7) tonne-f m)
|
Consideration will be given to direct calculations of long-term
vertical wave bending moments, see
Pt 3, Ch 4, 2.6 Approved calculation systems.
Table 4.5.1 Wave bending moment factor
Length
L, in metres
|
Factor
C
1
|
<
90
|
0,0412L + 4,0
|
90 to
300
|
10,75 -
|
>
300 ≤ 350
|
10,75
|
>
350 ≤ 500
|
10,75 -
|
5.2.2 The
longitudinal distribution factor, C
2, of wave
bending moment is to be taken as follows:
- 0 at the aft end of L
- 1,0 between 0,4L and 0,65L from aft
- 0 at the forward end of L
Intermediate values are to be determined by linear interpolation.
5.2.3 For
operation in sheltered water or short voyages, a higher permissible
still water bending moment can be assigned based on a reduced vertical
wave bending moment given by:
-
For operating
in sheltered water:
-
For short voyages:
These expressions can only be used in the expression for permissible
still water bending moment, see
Pt 3, Ch 4, 5.4 Minimum hull section modulus, and the relevant loading conditions
are to be included in the Loading Manual, see
Pt 3, Ch 4, 8.1 General.
5.3 Design still water bending moments
5.3.2 Still
water bending moments are to be calculated along the ship length.
For these calculations, downward loads are to be taken as positive
values and are to be integrated in the forward direction from the
aft end of L. Hogging bending moments are positive.
5.3.3 In general,
the following loading conditions, based on amount of bunkers, fresh
water and stores at departure and arrival, are to be considered.
-
General cargo
ships, container ships, passenger ships, roll on-roll off ships and
refrigerated cargo carriers:
-
Homogeneous
loading conditions, at maximum draught.
-
Ballast conditions.
-
Special
loading conditions, e.g. container or light load conditions at less
than the maximum draught, heavy cargo, empty holds or non-homogeneous
cargo conditions, deck cargo conditions, etc. where applicable.
-
Bulk carriers
(see
Pt 3, Ch 4, 3.2 General 3.2.2),
ore carriers and combination carriers
-
For ships of
length, L, less than 150 m:
Alternate hold
loading conditions at maximum draught, where applicable.
Homogeneous loading conditions at maximum draught.
Ballast conditions, including intermediate conditions associated
with ballast exchange at sea.
Special conditions, e.g. deck cargo conditions.
For combination carriers, the conditions as specified in (c)
for oil tankers are also to be considered.
-
For ships
of length, L, 150 m or above:
Alternate light
and heavy cargo loading conditions at maximum draught, where applicable.
Homogeneous light and heavy cargo loading conditions at maximum
draught.
Ballast conditions. Where vessels are designed with a ballast
hold adjacent to topside wing, hopper and double bottom tanks, the
structure design is to be such that the ballast hold can be filled
with all adjacent tanks empty;
Short voyage conditions where the ship is loaded to maximum
draught with reduced bunkers, where applicable.
Multiple port loading/unloading conditions, where applicable.
Deck cargo conditions, where applicable.
Typical loading and discharging sequences from commencement
to end of cargo operation, for homogeneous, alternate and part load
conditions, where applicable.
Typical sequences for exchange of ballast at sea, where applicable.
For combination carriers, the conditions as specified in (c)
for oil tankers are also to be considered.
For bulk carriers, the conditions as specified in Pt 3, Ch 4, 5.4 Minimum hull section modulus for the relevant notation are
also to be considered.
-
Oil tankers (see
Pt 3, Ch 4, 3.2 General 3.2.2):
-
Homogeneous
loading conditions (excluding dry and clean ballast tanks) and ballast
or part loaded conditions.
-
Any specified
non-uniform distribution of loading.
-
Mid-voyage
conditions relating to tank cleaning or other operations where these
differ significantly from the ballast conditions.
-
Chemical tankers:
-
Conditions as
specified for oil tankers.
-
Conditions
for high density or segregated cargo.
-
Liquefied gas
carriers:
-
Homogeneous loading conditions for all approved
cargoes.
-
Ballast conditions.
-
Cargo conditions where one or more tanks
are empty or partially filled or where more than one type of cargo
having significantly different densities is carried.
-
All ships:
-
Any other loading
condition likely to result in high bending moments and/or shear forces
(including docking conditions, as appropriate).
5.3.4 Where the amount and disposition of consumables at any intermediate stage of
the voyage are considered more severe, calculations for such intermediate conditions are
to be submitted in addition to those for departure and arrival conditions. Also where
any ballasting and/or de-ballasting is intended during voyage, calculations of the
intermediate condition just before and just after ballasting and/or de-ballasting any
tank are to be submitted and, where approved, included in the loading manual for
guidance. The specified percentage consumables for a given condition is based on the
overall percentage filling for a consumable type, e.g. for 50 per cent consumables, the
loading for each consumable type is to be 50 per cent, i.e. 50 per cent fresh water, 50
per cent fuel oil etc. Individual tanks within consumable groups can have filling levels
greater than the overall specified percentage filling level
5.3.5 Ballast
loading conditions involving partially filled peak and/or other ballast
tanks at departure, arrival or during intermediate conditions are
not permitted as design conditions unless the design stress limits
are satisfied for all filling levels between empty and full, and for
bulk carriers the requirements of Pt 4, Ch 7, 3 Longitudinal strength, as applicable, are to be complied with for all filling
levels between empty and full. To demonstrate compliance with all
filling levels between empty and full, it will be acceptable if, in
each condition at departure, arrival and where required by Pt 3, Ch 4, 5.3 Design still water bending moments 5.3.3, any intermediate condition,
the tanks intended to be partially filled are assumed to be:
- empty
- full
- partially filled at intended level.
Where multiple tanks are intended to be partially filled, all combinations
of empty, full or partially filled at intended level for those tanks are to be
investigated.
See also
Pt 3, Ch 4, 5.3 Design still water bending moments 5.3.7 and Pt 3, Ch 4, 5.3 Design still water bending moments 5.3.8 for ore carriers and Pt 3, Ch 4, 5.3 Design still water bending moments 5.3.6 for cargo ships in general except container
ships.
5.3.6 Cargo ships which might have one ballast water tank (or one pair of ballast water tanks)
partially filled in ballast loading conditions are to be considered as either Case A or
Case B as appropriate where;
Case A covers cargo ships where partial filling of a ballast water
tank is permitted and may take place at any point during the ballast voyage.
Intermediate conditions are to be specified, see also
Pt 3, Ch 4, 5.3 Design still water bending moments 5.3.4; however, the filling/partial filling
of the ballast water tank can be done at any step, in order to keep acceptable trim and
propeller immersion during the ballast voyage. For the purposes of strength
verification, the following loading conditions are to be considered;
- ballast tank full at departure and arrival; and
- ballast tank empty at departure and arrival.
Case B covers cargo ships where partial filling of a ballast tank to
a given level is only permitted during intermediate conditions, see also
Pt 3, Ch 4, 5.3 Design still water bending moments 5.3.4, between a given range of consumables, e.g. between
50 percent and 20 percent ,consumables. For the purposes of strength verification, the
following loading conditions are to be considered;
- ballast tank full at upper filling level of consumables (i.e. if the
given range of consumables is between 50 percent and 20 percent then the ballast
tank is to be considered as full at 50 percent consumables); and
- ballast tank empty at lower filling level of consumables (i.e. if
the given range of consumables is between 50 percent and 20 percent then the
ballast tank is to be considered as empty at 20 percent consumables); and
- ballast tank empty at upper filling level of consumables (i.e. if the
given range of consumables is between 50 percent and 20 percent then the ballast
tank is to be considered as full at 50 percent consumables); and
- ballast tank full at lower filling level of consumables (i.e. if the
given range of consumables is between 50 percent and 20 percent then the ballast
tank is to be considered as empty at 20 percent consumables).
For Case B ships, clear operational guidance for partial filling of ballast tanks, in
association with the consumption level is to be given in the loading manual.
5.3.7 Conventional ore carriers (with usual arrangement of WBT) with two pairs of
partially filled ballast water tanks are to be considered as Case C. Operational loading
conditions are to be considered in association with specified filling levels of the
ballast tanks intended to be partially filled, see
Table 4.5.2 Loading conditions for
conventional ore carrier with two pairs of partially filled tanks. For the purposes of strength verification, combinations
of ballast tank filling levels are to be considered for the departure, arrival and
intermediate conditions, see
Table 4.5.3 Strength conditions for
conventional ore carrier with two pairs of partially filled tanks;
Table 4.5.2 Loading conditions for
conventional ore carrier with two pairs of partially filled tanks
Loading condition
|
Consumables, see Note
|
WBT
Filling level
|
Departure
|
100%
|
Dep
%
|
Intermediate 1
|
50%
|
Dep
%
|
Intermediate 2
|
50%
|
Int
%
|
Intermediate 3
|
20%
|
Int
%
|
Intermediate 4
|
20%
|
Arr
%
|
Arrival
|
10%
|
Arr
%
|
|
Table 4.5.3 Strength conditions for
conventional ore carrier with two pairs of partially filled tanks
Strength condition
|
Departure
|
Intermediate 1
|
Intermediate 2
|
Intermediate 3
|
Intermediate 4
|
Arrival
|
WBT
A
|
WBT
F
|
WBT
A
|
WBT
F
|
WBT
A
|
WBT
F
|
WBT
A
|
WBT
F
|
WBT
A
|
WBT
F
|
WBT
A
|
WBT
F
|
1
|
Max
|
Dep
%
|
Max
|
Dep
%
|
Max
|
Int
%
|
Max
|
Int
%
|
Max
|
Arr
%
|
Max
|
Arr
%
|
2
|
Min
|
Dep
%
|
Min
|
Dep
%
|
Min
|
Int
%
|
Min
|
Int
%
|
Min
|
Arr
%
|
Min
|
Arr
%
|
3
|
Full
|
Max
|
Full
|
Max
|
Int
%
|
Max
|
Full
|
Max
|
Arr
%
|
Max
|
Full
|
Max
|
4
|
Full
|
Min
|
Full
|
Min
|
Int
%
|
Min
|
Full
|
Min
|
Arr
%
|
Min
|
Full
|
Min
|
5
|
Empty
|
Max
|
Empty
|
Max
|
|
Empty
|
Max
|
|
Empty
|
Max
|
6
|
Empty
|
Min
|
Empty
|
Min
|
Empty
|
Min
|
Empty
|
Min
|
7
|
Dep
%
|
Max
|
Dep
%
|
Max
|
Int
%
|
Max
|
Arr
%
|
Max
|
8
|
Dep
%
|
Min
|
Dep
%
|
Min
|
Int
%
|
Min
|
Arr
%
|
Min
|
9
|
Max
|
Full
|
Max
|
Full
|
Max
|
Full
|
Max
|
Full
|
10
|
Min
|
Full
|
Min
|
Full
|
Min
|
Full
|
Min
|
Full
|
11
|
Max
|
Empty
|
Max
|
Empty
|
Max
|
Empty
|
Max
|
Empty
|
12
|
Min
|
Empty
|
Min
|
Empty
|
Min
|
Empty
|
Min
|
Empty
|
Note 2. WBT A refers to
the aft partially filled ballast tank. WBT F refers to the forward
partially filled ballast tank.
|
5.3.8 For conventional ore carriers with large wing water ballast tanks in the cargo area,
where empty or full ballast water filling levels of one or maximum two pairs of these
tanks lead to the ship's trim exceeding one of the following conditions, it is
sufficient to demonstrate compliance with maximum, minimum and intended partial filling
levels of the ballast tanks, such that the ship's condition does not exceed any of these
trim limits. Filling levels of all other wing ballast tanks are to be considered between
empty and full. The trim conditions mentioned above are:
- trim by stern of 3 percent of the ship's length, or
- trim by bow of 1,5 percent of ship's length, or

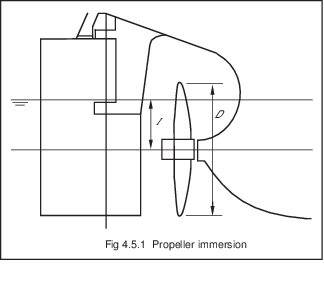

- any trim that cannot maintain propeller immersion (I/D) of at least 25
percent,
The maximum and minimum filling levels of the above mentioned pairs of side ballast
tanks are to be indicated in the loading manual.
5.4 Minimum hull section modulus
5.4.1 The
hull midship section modulus about the transverse neutral axis, at
the deck or the keel, is to be not less than:
Z
min
|
= |
f
1
k
L
C
1
L
2
B (C
b +
0,7) x 10-6 m3
|
|
= |
and f
1 is to be taken not less than 0,5.
|
5.4.3 The
midship section modulus for ships with a service restriction notation
is to be not less than half the minimum value required for unrestricted
service.
5.4.4 Scantlings
of all continuous longitudinal members of the hull girder based on
the minimum section modulus requirements given in Pt 3, Ch 4, 5.4 Minimum hull section modulus 5.4.1 are to be maintained within
0,4L amidships. However, in special cases, based on consideration
of type of ship, hull form and loading conditions, the scantlings
may be gradually reduced towards the ends of the 0,4L part,
bearing in mind the desire not to inhibit the vessel's loading flexibility.
5.4.5 Outside
0,4L amidships, as a minimum, hull girder bending strength
checks are to be carried out at the following locations:
-
In way of the
forward end of the engine room.
-
In way of the
forward end of the foremost cargo hold.
-
At any locations
where there are significant changes in hull cross-section.
-
At any locations
where there are changes in the framing system.
5.5 Permissible still water bending moments
5.5.1 The
permissible still water bending moments sagging and hogging are to
be taken as the lesser of the following:
-
|
= |
F
DσZ
D x 103 − |M
w | kN m |
-
|
= |
F
BσZ
B x 103 − |M
w | kN m |
5.6 Permissible hull vertical bending stresses
5.6.1 The
permissible combined (still water plus wave) stress for hull vertical
bending, σ, is given by:
-
within 0,4L amidships
-
for continuous
longitudinal structural members outside 0,4L amidships
where d is the distance, in metres,
from the F.P. (for the fore end region) or from the A.P. (for the
aft end region), as appropriate, to the location under consideration.
Special consideration will be given to increasing the permissible
stress outside 0,4L amidships to
provided that sufficient buckling checks are carried
out.
5.6.2 The
requirements for ships of special or unusual design and for the carriage
of special cargoes will be individually considered.
5.7 Local reduction factors
5.7.1 The
maximum hull vertical bending stresses at deck, σD,
and keel, σB, are given by the following, using the
appropriate combination of bending moments to give sagging and hogging
stresses:
Where the ship is always in the hogging condition,
the sagging bending moment is to be specially considered.
5.7.2 Where
the maximum hull vertical bending stress at deck or keel is less than
the permissible combined stress, σ, reductions in local scantlings
within 0,4L amidships may be permitted. The reduction
factors applicable in Pt 4 Ship Structures (Ship Types) are defined
as follows:
-
For hull members above the neutral axis
-
For hull members below the neutral axis
In general, the values of σD and σBto be used are the greater of the sagging or hogging stresses,
and F
D and F
B are
not to be taken less than 0,67 for plating and 0,75 for longitudinal
stiffeners.
5.7.3 Where
higher tensile steel is used in the hull structure, the values of F
D and F
B for the mild steel
part are to be taken as not less than
5.8 Hull moment of inertia
5.9 Continuous strength members above strength deck
5.9.1 Where
trunk decks or continuous hatch coamings are effectively supported
or deck longitudinals or girders are fitted above the strength deck,
the modulus Z
c is to be not less than Z
min. The scantling reduction factor, F
D,
referred to strength deck at side, is applicable and, in addition
to the requirement given in Pt 3, Ch 4, 5.5 Permissible still water bending moments 5.5.1,
the permissible still water bending moments, sagging and hogging,
are not to exceed:
|
= |
σZ
c x 103 − |M
w| kN m |
|
