Section
3 Rotor Survey & Approval

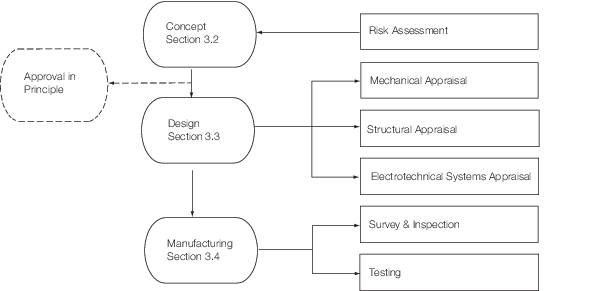

3.1 General
3.2 Concept
3.2.1
Risk Assessment. A risk assessment at the concept design stage is to be carried
out with the aim of achieving the two safety objectives, which are
described in Section Ch 1, 2.1 Objectives of Approval for Flettner Rotors. Such an assessment
would generally be carried out by the party seeking the approval with
or without support from LR and should be in accordance with LR’s ShipRight procedure for ARBD.
3.2.2
Approval
in Principle. The risk assessment process aims to ensure that
reasonably foreseeable hazards associated with any particular Flettner
rotor design are identified and adequately controlled. After reviewing
the completed risk assessment report, Approval in Principle (AiP)
for the Flettner rotor can be issued subject to identified hazards
being satisfactorily addressed.
3.3 Design
3.3.1 Mechanical Appraisal
-
Required Submissions
- Scoping study report (Stage 1 ARBD process)
- Risk Assessment report (Stage 2 ARBD process)
- Specification/requirements (Rotor inner and outer diameters, thickness,
length, material, speed, etc.,)
- Rotor design and drawings – Detailed breakdown
- Calculated maximum actual thrust – All supporting calculations
and assumptions
- Details of the rotational drive system and bearing specification
(Name of the manufacturer, maximum thrust load, etc.,)
- Drawings and details of any hydraulic actuating mechanisms (Pipe
design pressure, inner and outer diameters, thickness, material, design
and working temperature, etc.,)
- Information related to all the materials used for rotor construction
- Factory Acceptance Test (FAT) schedule
-
Applicable Rules (Existing) Provisional Rules for Sail-Assisted Ships, January
2008 Rules and Regulations for the Classification
of Ships:
ShipRight procedure for ARBD
-
Additional Verification Theoretical Maximum Thrust:
- Verification of client’s thrust calculation
- Thrust passed on to structures
- First principle calculation
The following formula may be used to calculate theoretical thrust
(TFRT) produced by the Flettner rotor in Newton (N):
TFRT = ρ x v x 2π x ωr2 x
L
where
v |
= |
maximum wind speed
(m/s) |
ω |
= |
rotational
speed (rad/s) |
L |
= |
length of the
rotor (m) |
Bearing Loading Check:
- Assessment of bearing specification for the loads applied
General Design Analysis and Construction Review:
- Access provisions for maintenance
- Review of any application specific to safety considerations, e.g.,
personnel access during rotor operation
Suitability for hazardous/explosive atmospheres.
-
Deliverables The
Design Appraisal Document (DAD) will be issued at the end of the design
approval process.
3.3.2 Structural Appraisal
-
Required Submissions
- Scoping study report (Stage 1 ARBD process)
- Risk Assessment report (Stage 2 ARBD process)
- Specification/requirements (Rotor inner and outer diameters, thickness,
length, material, speed, etc.,)
- The intended service area
- Finite Element Analysis (FEA) for structure
- Plans and full particulars of the rotor systems showing materials
and methods of construction and any secondary means of support
- Supporting calculations in respect of the strength of the rotor
systems
- Thrust calculations
-
Applicable Rules (Existing) LR Code for Lifting Appliances in a Marine Environment (LAME)
(2013)
Provisional Rules for Sail-Assisted Ships, January
2008
Ch 1, 1.4 Structural arrangements 1.4.2 covers strength
requirements for masts and posts. Strength must be adequate to resist
highest design loading not less than that imposed by the sail system
in the normal working conditions and emergency conditions. ShipRight procedure for ARBD
-
Additional Verification Ch 4, 2.12 Wind loading –
These requirements are valid for non-rotating conditions. In rotating
conditions, the design calculations specific to the Magnus Effect
are required to be submitted to LR’s Plan Appraisal Offices.
The FAT and test program results are to be analysed by the designer,
the local Surveyor and the Plan Appraisal Office.
-
Deliverables The
DAD will be issued at the end of the design approval process.
3.3.3 Electrotechnical Systems
Appraisal
-
Required Submissions Scoping
study report (Stage 1 ARBD process) Risk Assessment report (Stage
2 ARBD process) Details of the safety systems which are to include:
- Assurance case identifying safety critical elements of the system
- Methodology and evidence for reducing the identified hazards in
the Risk Assessment report to a tolerable level
Details of control systems which are to include:
- interfaces with ship's control, alarms and safety systems
- description of operation with explanatory diagrams
- line diagrams of control circuits
- list of alerts and alarms and actions required by the operators
- hardware certification details
- software quality plans for software development
- plans showing location and details of control stations
Single line diagram of power system which is to include:
- interfaces with ship's electrical systems
- ratings of machines, transformers, batteries and semi-conductor
converters
- all feeders connected to the switchboards
- section-boards and distribution boards
- insulation type, size and current loadings of cables
- make, type and rating of circuit-breakers and fuses
FAT schedule
-
Applicable Rules (Existing) Rules and Regulations for the Classification of Ships
-
Pt 6, Ch 1, 1 General requirements
- Part 6, Chapter 1, Sections Pt 6, Ch 1, 2.1 General, Pt 6, Ch 1, 2.10 Programmable electronic systems - General requirements,
and Pt 6, Ch 1, 2.14 Programmable electronic systems – Additional requirements for integrated systems – Essential
features for control, alarm and safety systems
-
Pt 6, Ch 1, 3 Ergonomics of control stations
- Part 6, Chapter 1, Sections Pt 6, Ch 1, 7.1 General, Pt 6, Ch 1, 7.4 Record of trials – Trials of control systems
-
Pt 6, Ch 2, 1 General requirements
-
Pt 6, Ch 2, 5 Supply and distribution
-
Pt 6, Ch 2, 6 System design – Protection
-
Pt 6, Ch 2, 7 Switchgear and controlgear assemblies
-
Pt 6, Ch 2, 8 Protection from electric arc hazards within electrical equipment
-
Pt 6, Ch 2, 9 Rotating machines
-
Pt 6, Ch 2, 10 Converter equipment
-
Pt 6, Ch 2, 11 Electric cables, optical fibre cables and busbar trunking systems (busways)
-
Pt 6, Ch 2, 14 Electrical equipment for use in explosive gas atmospheres or in the presence of combustible dusts
-
Pt 6, Ch 2, 21 Testing and trials
Provisional Rules for Sail-Assisted Ships (2008)
ShipRight procedure for ARBD
-
Additional Verification No additional requirements.
-
Deliverables The
DAD will be issued at the end of the design approval process.
3.4 Manufacturing
3.4.1
Survey &
Inspection. The survey and inspection of the rotor during its
construction are to ensure that the relevant Rule requirements stated
in these Guidance Notes have been complied with and any conditions/recommendations
given in DAD are addressed. It has to be conducted in accordance with Ch 1, 1.6 Survey requirements for sail systems of Provisional Rules for
Sail-Assisted Ships, January 2008 andCh 12, 3 Survey requirements as applicable.
3.4.2
Testing.
The FAT following rotor construction is to ensure that the relevant
Rule requirements stated in these Guidance Notes have been complied
with and any conditions/recommendations given in DAD are addressed.
It also needs to be checked that the test schedule agreed with LR
has been properly implemented. It has to be conducted in accordance
with Ch 1, 1.6 Survey requirements for sail systems of Provisional
Rules for Sail- Assisted Ships, January 2008 and Ch 12, 3 Survey requirements as applicable.
|
